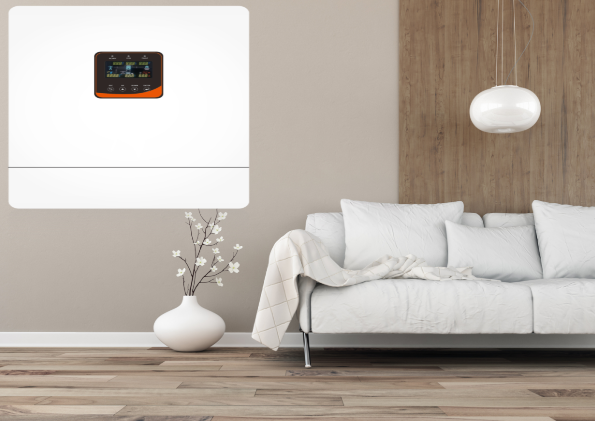

WIFI 4G Hybrid Solar Inverter 10KW Hybrid Inverter Single Phase
WIFI 4G Hybrid Solar Inverter 10KW Hybrid Inverter Single Phase
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$850-1100
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
External Module :
WIFI/4G
Max. Open Circuit Voltage (VDC)  :
500+500
Description
10kW Hybrid Single-Phase Inverter
Product Overview
This advanced hybrid energy storage inverter integrates photovoltaic energy storage, utility power storage, and AC sine wave output. Utilizing DSP control with sophisticated algorithms, it delivers exceptional response speed, reliability, and industrial-grade performance standards.
Key Features
  • Three Output Modes: Grid-tied power generation, grid-tied anti-backflow, and off-grid output modes
  • Four Charging Modes: Utility power priority, photovoltaic priority, hybrid charging, and photovoltaic-only charging
  • Emergency Functions: Battery-free output, standalone photovoltaic start-up with load carrying, and battery activation capability
  • Advanced Communication: Real-time system monitoring and control via upper computer and APP cloud interfaces
  • Parallel Operation: Supports up to 9 parallel units for flexible single-phase and three-phase AC power configurations
  • Comprehensive Protection: Complete hardware and software protection with fault type display for easy troubleshooting
WIFI 4G Hybrid Solar Inverter 10KW Hybrid Inverter Single Phase
Technical Specifications
Inverter Output
Rated Output Power (W) 10000
Rated Output Power (VA) 10000
Maximum Peak Power (W) 15000
Motor Capacity (HP) 6
Rated AC Output 230VAC (Adjustable 200/208/220/240VAC), 50/60Hz
Inverter and Bypass Switching Time 10ms (typical)
Maximum Number of Parallel Units 9
Maximum Battery Inverter Efficiency 93%
Overload Protection 102%~110%, 5min; 110%~125%, 10s; >125%, 5s
Battery System
Battery Type Lithium / Lead-acid / User-defined
Rated Battery Voltage (VDC) 48
Battery Voltage Range (VDC) 40~60
Max MPPT Charge Current (A) 200
Max AC Charge Current (A) 120
Max Mixed Charge Current (A) 200
Charging Current Error (ADC) ±3
Charging Short Circuit Protection Fuse
PV Charging
Number of MPPT Trackers 2
Max PV Array Power (W) 5500+5500
Max PV Input Current (A) 22+22
Max Open Circuit Voltage (VDC) 500+500
MPPT Operating Range (VDC) 120~450
MPPT Tracking Efficiency 99.9%
Mains Input
Input Voltage Range (VAC) 90~280 / 170~280
Frequency Range (Hz) 50/60±3
Output Short-Circuit Protection Circuit Breaker
Bypass Overload Current (A) 63
Physical Specifications
Dimensions (D×W×H) mm 130×445×630
Weight (kg) 27
Waterproof Rating IP20
Working Temperature Range (°C) -10~55
Storage Temperature Range (°C) -25~60
Noise (dB) <60
Cooling Method Forced Air Cooling (Adjustable Fan Speed)
Communication
Embedded Interface RS485 / CAN / USB / Dry Contact
External Module WIFI / 4G
Certifications
Safety CE (IEC62109-1)
EMC EN61000
Model: CH--GST48-10K
