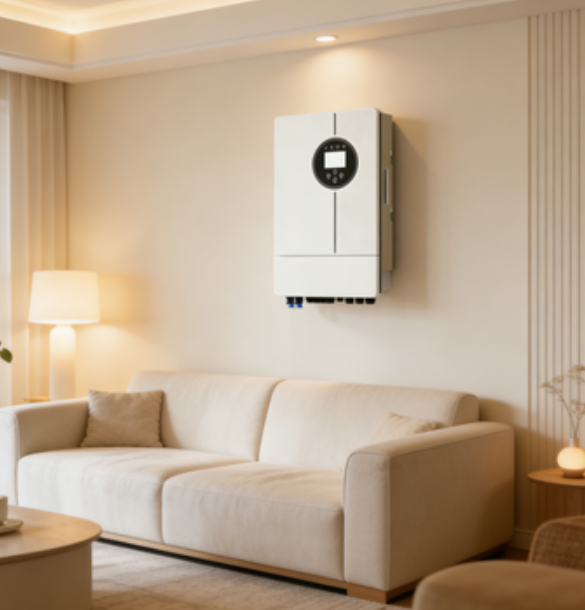

Single Phase 3KW Hybrid Solar Inverter Home Energy Storage Inverter
Single Phase 3KW Hybrid Solar Inverter Home Energy Storage Inverter
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$750-950
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Ingress Protection(IP) Rating :
IP65
Max. PV Input Power (W) :
4800W
Description
3kW Single-phase Hybrid Energy Storage Inverter
This hybrid inverter series is engineered to simultaneously support photovoltaic (PV) and energy storage systems. It combines grid-tied and off-grid functionality with bidirectional power control and intelligent energy management, enabling fully autonomous power distribution. Designed with modern aesthetics that complement smart home environments, it provides an ideal residential power solution.
The inverter series offers broad battery compatibility and works seamlessly with our dedicated battery systems. It supports multiple charge and discharge power configurations, ensuring safe, stable, and reliable residential power supply.
Safety Features
  • Intelligent AI-DC Arc fault protection
  • Supports 2x overload capacity for short durations
  • IP65 protection rating
Flexible Integration
  • Compatible with diesel generators
  • AC coupling for retrofitting existing solar systems
  • Maximum 10 units parallel operation for on/off-grid
  • Supports multiple battery parallel connections
Smart Operation
  • 4ms backup power switching
  • Color LCD touchscreen for setup and monitoring
  • 6 programmable time periods for battery charging/discharging
High Efficiency
  • Supports 1.6x DC overloading
  • 180A charge and discharge current
  • 97.6% maximum conversion efficiency
  • 95% maximum charging efficiency
Single Phase 3KW Hybrid Solar Inverter Home Energy Storage Inverter
Technical Specifications
Model Information
Model CH-LVEH1P3K-EU-G1
CH-LVEH1P3K-BR-G1
Battery Input Specifications
Battery Type Lead-acid/Li-Ion
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 70
Max. Discharging Current (A) 70
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Specifications
Max. PV Input Power (W) 4800
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 120
MPPT Voltage Range (V) 120~425
Rated PV Input Voltage (V) 370
Max Operating PV Input Current (A) 20
Max. Input Short-Circuit Current (A) 23
No. of MPP Tracker / No. of Strings MPP Tracker 1+1
AC Input/Output Specifications
Rated AC Input/Output Active Power (W) 3000
Max. AC Input/Output Apparent Power (VA)* 3300
Rated AC Input/Output Current (A) 13.6/13
Max. AC Input/Output Current (A)* 15/14.3
Max. Continuous AC Passthrough (grid to load) (A) 27
Peak Power (off-grid) (W) 2 times of rated power for 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range (Hz) 50/45-55, 60/55-65
Grid Connection Form L+N+PE
Total Current Harmonic Distortion THDi <2% (of nominal power)
DC Injection Current <0.5% In
Efficiency Ratings
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99%
Equipment Protection
Integrated Protection DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge Protection Level
Surge Protection Level TYPE II (DC), TYPE II (AC)
Interface & Communication
Communication Interface RS485/CAN
Monitor Mode WIFI
General Data
Operating Temperature Range (°C) -40 to +60
Permissible Ambient Humidity 0-100%
Permissible Altitude (m) 3000
Ingress Protection (IP) Rating IP65
Inverter Topology Non-Isolated
Over Voltage Category OVC II (DC), OVC III (AC)
Cabinet Size (W×H×D mm) 330×563×223
Weight (kg) 23.7
Type of Cooling Natural cooling
Warranty 5 Years / 10 Years
The Warranty Period Depends on the Final Installation Site of Inverter. More Info Please Refer to Warranty Policy
Safety/EMC Standard IEC/EN 61000-6-1:2019, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, IEC 63027:2023
*It is only implemented under specific safety regulations and working conditions
