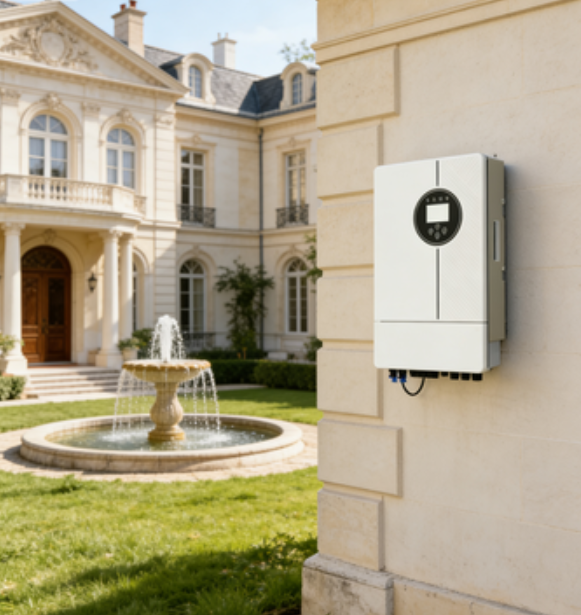

8000W Hybrid On Grid Inverter IP65 8Kw Inverter Solar Single Phase
8000W Hybrid On Grid Inverter IP65 8Kw Inverter Solar Single Phase
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$1300-1500
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
MPPT Efficiency :
99%
Ingress Protection(IP) Rating :
IP65
Description
8kW Single Phase Hybrid Inverter with IP65 Protection
This hybrid inverter series delivers advanced bidirectional power control for energy storage systems, seamlessly integrating photovoltaic and battery storage operations. Engineered for residential applications, it combines grid-tied and off-grid functionality with intelligent energy management for complete energy autonomy.
Compatible with diverse battery technologies including our dedicated battery series, this inverter supports multiple charge/discharge power configurations to ensure safe, stable, and reliable residential power supply.
Safety Features
  • Intelligent AI-DC Arc fault protection
  • Supports 2x overload capacity for short durations
  • IP65 protection rating
Flexible Operation
  • Compatible with diesel generators
  • AC coupling for retrofitting existing solar systems
  • Max. 10 units parallel operation for on/off-grid
  • Supports multiple battery parallel connection
Smart Control
  • 4ms backup power switching
  • Color LCD touchscreen for setup & monitoring
  • 6 programmable time periods for battery charging/discharging
High Efficiency
  • Supports 1.6x DC overloading
  • 180A charge and discharge current
  • 97.6% maximum conversion efficiency
  • 95% maximum charging efficiency
8000W Hybrid On Grid Inverter IP65 8Kw Inverter Solar Single Phase
Technical Specifications
Model Numbers
CH-LVEH1P8K-EU-G1, CH-LVEH1P8K-BR-G1
Battery Input Data
Battery Type Lead-acid/Li-Ion
Battery Voltage Range (V) 40~60
Max. Charging Current (A) 180
Max. Discharging Current (A) 180
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
PV String Input Data
Max. PV Input Power (W) 12800
Max. PV Input Voltage (V) 500
Start-up Voltage (V) 120
MPPT Voltage Range (V) 120~425
Rated PV Input Voltage (V) 370
Max Operating PV Input Current (A) 20+20
Max. Input Short-Circuit Current (A) 23
No. of MPP Tracker / No. of Strings MPP Tracker 2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W) 8000
Max. AC Input/Output Apparent Power (VA)* 8800
Rated AC Input/Output Current (A) 36.4/34.8
Max. AC Input/Output Current (A)* 40/38.3
Max. Continuous AC Passthrough (grid to load) (A) 54
Peak Power (off-grid) (W) 2 times of rated power for 10s
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V) 220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range (Hz) 50/45-55, 60/55-65
Grid Connection Form L+N+PE
Total Current Harmonic Distortion THDi <2% (of nominal power)
DC Injection Current <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99%
Equipment Protection
Integrated: DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge Protection Level
Surge Protection Level
TYPE II (DC), TYPE II (AC)
Interface
Communication Interface RS485/CAN
Monitor Mode WIFI
General Data
Operating Temperature Range (°C) -40 to +60
Permissible Ambient Humidity 0-100%
Permissible Altitude (m) 3000
Ingress Protection (IP) Rating IP65
Inverter Topology Non-Isolated
Over Voltage Category OVC II (DC), OVC III (AC)
Cabinet Size (WxHxD mm) 330×563×223
Weight (kg) 24.9
Type of Cooling Intelligent Air Cooling
Warranty 5 Years / 10 Years
The warranty period depends on the final installation site of inverter. More information please refer to warranty policy.
Safety/EMC Standard
IEC/EN 61000-6-1:2019, IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, IEC 63027:2023
*It is only implemented under specific safety regulations and working conditions
