Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Factory & Customizable & Balanced IP68 Underwater 70110 Brushless DC Drive Amphibious Fully Waterproof Motor 70KV/120KV 2000W
Specifications
Motor Mounting Type :
Flange Mount
Type :
dc Brushless Motor
Voltage range :
7-12S (29-50.4V)
Warranty :
3 months ~ 1 year
Dynamic balance :
YES
Testing :
YES
Efficiency :
90%
KV(RPM/V) :
70KV/120KV
Lead wires extension :
14AWGx330mm
Construction :
Permanent Magnet
Rated Power :
2000W
Max Spin Speed(RPM) :
6000
Brand Name :
HOBBYSKY
Place of Origin :
Guangdong, China
Frame :
NO
Usage :
Boat, Home Appliance, ROV AUV Motor Propeller Electric Bodyboard Sea ScooterJet Aqua
Payment Terms :
D/A,D/P,T/T,Paypal
Protect Feature :
Waterproof
Torque :
2-3 N/m
Delivery Time :
1-2weeks after payment done
Speed(RPM) :
unknown
Demension :
D70*L106mm
Model Number :
HS-70110
Max working temperature :
120
Insulation voltage leak current :
AC500V/10MA/3S
Supply Ability :
5000pcs per Month
Commutation :
Brushless
Max torque at 60% :
5NM
Appearance Customization :
YES
MOQ :
Low MOQ
Price :
Contact us,get the best price
Peak current :
40A
Continuous Current(A) :
40A
Max Power :
2000W
Packaging Details :
Conventional Paper Boxes&Customization
Rated voltage :
48 V DC
KV customization :
YES
Description
Products Description
Product Spec:
* Voltage range: 7-12S (29-50.4V)

* Max Spin Speed(RPM): 6000

* KV(RPM/V): 70KV/120KV

* Max Power:2000W

* Peak current: 40A

* Max torque at 60%:5NM

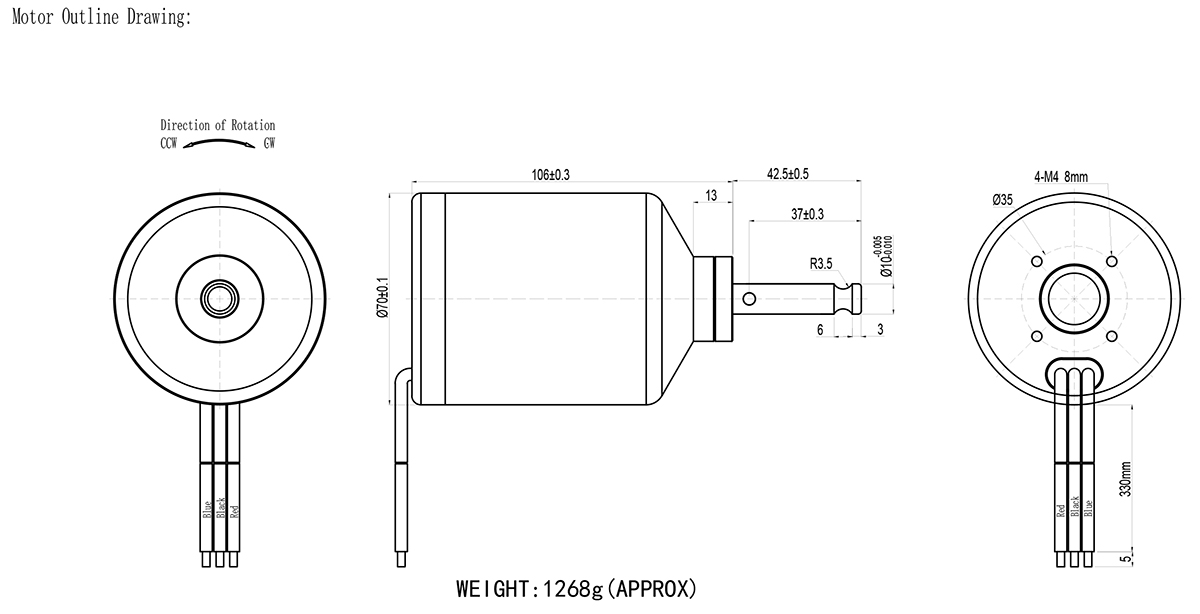

* Demension: D70*L106mm

* Max working temperature: 120︒C

* Insulation voltage & leak current: AC500V/10MA/3S

* Lead wires extension: 14AWGx330mm

* Waterproof level:IP68
* Weight:1.27kg


Applications: * Fits Yamaha 2HP 2.0HP 2.5HP.
