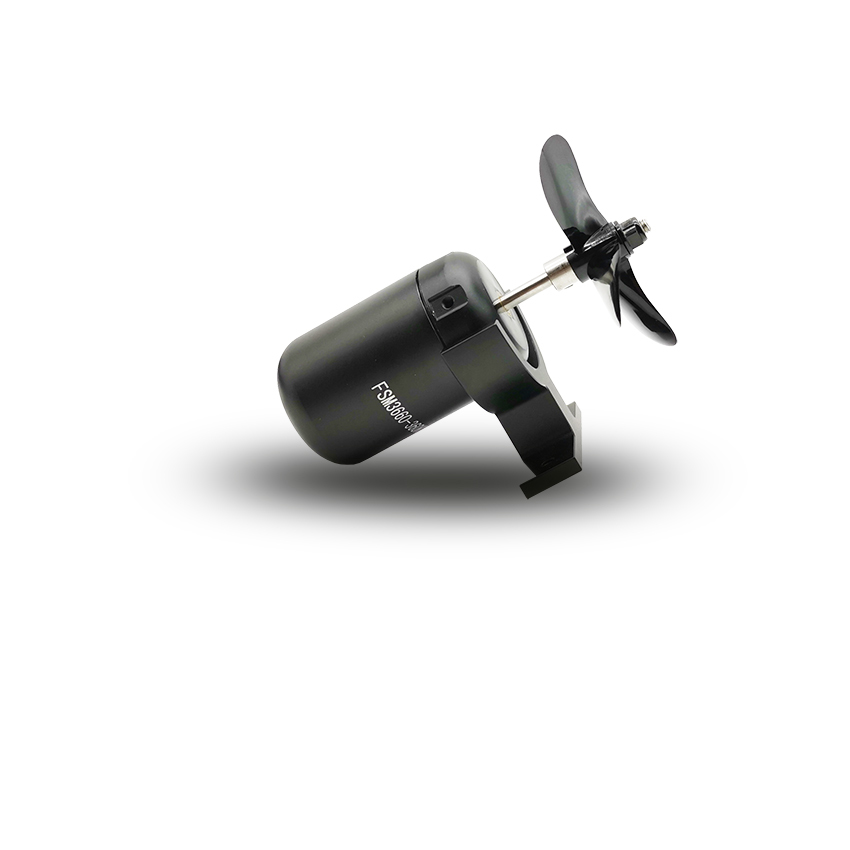

Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Factory & Customizable & Balanced Brushless DC Drive 3660 Motor 360KV for Waterproof Underwater Thruster Robot RC Robot & Boat
Specifications
Motor Mounting Type :
Flange Mount
Type :
dc Brushless Motor
KV value: :
360KV or customized
Warranty :
15 months
Supply Ability :
5000pcs per Month
Efficiency :
90%
Input voltage: :
12,16,24V
Testing :
YES
KV customization :
YES
Place of Origin :
Guangdong, China
Frame :
NO
Usage :
Boat, Home Appliance, Cosmetic Instrument, Smart Home, AGV
Protect Feature :
Waterproof
Torque :
0.3-0.5 N/m
Dynamic balance :
YES
Price :
Contact us,get the best price
Construction :
Permanent Magnet
Rated Power :
250 W
propeller diameter: :
60mm
Model Number :
3660
Brand Name :
HOBBYSKY
Delivery Time :
1-2weeks after payment done
Lipo cell :
3-6s
Weight :
260g
Speed(RPM) :
4250RPM)-8450(RPM)
Payment Terms :
D/A,D/P,T/T,Paypal
Packaging Details :
Conventional Paper Boxes&Customization
Power :
72,120, 265w
loaded current: :
6.5, 8.0,11.6A
Appearance Customization :
YES
Continuous Current(A) :
6.5-11.6(A)
No load speed: :
4250,5680,8450 rpm
MOQ :
Low MOQ
Rated voltage :
Dc 24V
Certification :
ce/RoHS
Commutation :
Brushless
Pull :
1300, 1520, 2500g
Description
Products Description
KV (rpm/v)
Voltage (V)
No load current (A)
No load speed (RPM)
Load current (A)
Pull (g)
Power (w)
Lipo cell (s)
Weight (g) Approx
360 or customize for you
12
0.5
4250
6.5
1300
72
3-6s
260g

16
0.55
5680
8.0
1520
120



24
0.65
8450
11.6
2500
265

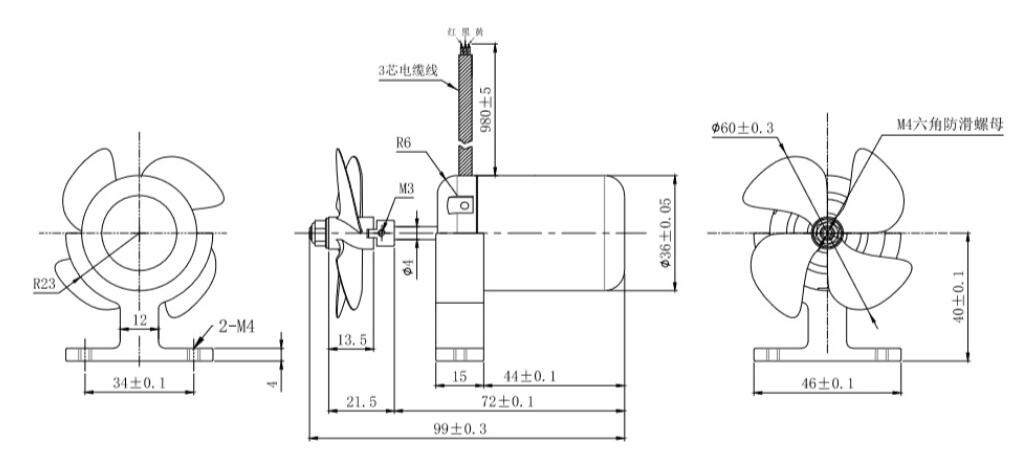

Outline drawing
