Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
Specifications
Place of Origin :
Guangdong, China
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Input voltage: :
10-20S
Warranty :
12 months
Efficiency :
90%
maximum: :
190 (A)
Brand Name :
HOBBYSKY
Payment Terms :
D/A,D/P,T/T,Paypal
Appearance Customization :
YES
Construction :
Permanent Magnet
Rated Power :
10KW
Shaft diameter: :
12.0MM
Delivery Time :
1-2weeks after payment done
Frame :
NO
Usage :
Boat, Car, Electric Bicycle, manned ship helicopter submerged propeller electric cart trolley
Protect Feature :
Drip-proof
Torque :
8-10 N.m, 8-10N.m
Dynamic balance :
YES
Speed(RPM) :
3655RPM)-3881RPM)
KV customization :
YES
MOQ :
Low MOQ
Supply Ability :
5000pcs per Month
shaft length :
40mm
Packaging Details :
Conventional Paper Boxes&Customization
wire length :
150mm
Price :
Contact us,get the best price
Commutation :
Brushless
Weight: :
3.2kg
Testing :
YES
Model Number :
103117
Max power: :
15KW
Continuous Current(A) :
190(A)
No-load current (24V): :
4.99(A)
Certification :
ce/RoHS
Rated voltage :
dc 85v
Description
Products Description
MODEL:
103117
Body diameter
103mm
Body height
117mm
Shaft diameter
12mm
Output shaft length
40mm
Weight
3.5kg
Maximum power
15kw
Hall wire
Default or custom
No-load current
4.99A at 24v
Maximum current
170A
Recommended voltage
10-20s
No-load speed
11495~10401 RPM
Torque
10-15N.m

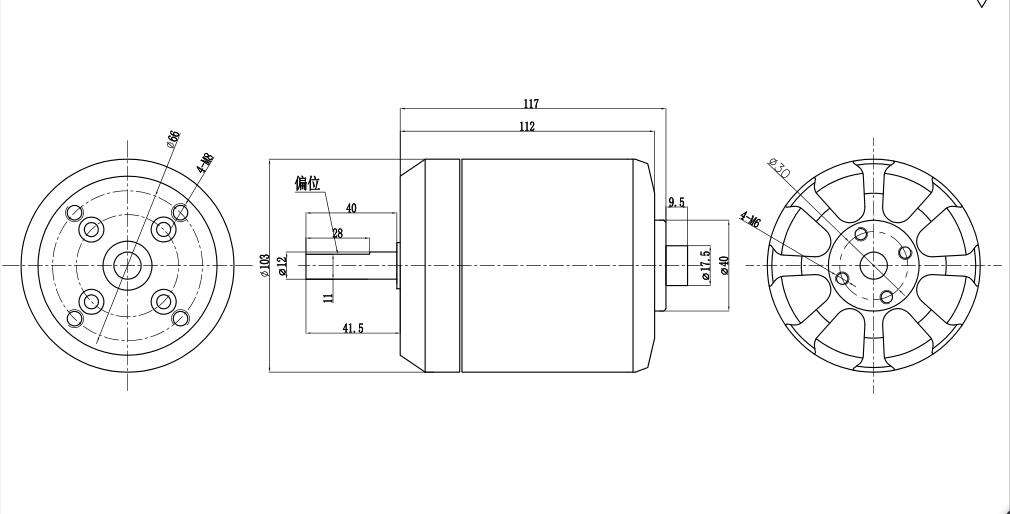

Outline drawing
Factory&Customizable BLDC Drive 103117 Outrunner 10KW Motor for Skateboard Scooter Helicopter Underwater Propeller Cart Trolley
