Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard
Specifications
Delivery Time :
1-2weeks after payment done
Motor Mounting Type :
Flange Mount
Usage :
Boat
Speed(RPM) :
100KV
MOQ :
Low MOQ
Frame :
No
Rated Power :
6000 W
Model Number :
65162
IP Rating :
Ip68
Warranty :
3 months ~ 1 year
Testing :
YES
Protect Feature :
Drip-proof
Type :
Brushless Motor
Brand Name :
Hobbysky
Packaging Details :
Conventional Paper Boxes&Customization
Payment Terms :
D/A,D/P,T/T,Paypal
Commutation :
Brushless
Appearance Customization :
YES
Place of Origin :
Guangdong, China
Certification :
CE/EEC/COC
Price :
Contact us,get the best price
Supply Ability :
5000pcs per Month
Continuous Current(A) :
120A
Rated voltage :
48 V DC
Construction :
Permanent Magnet
Dynamic balance :
YES
KV customization :
YES
Description
Product Description

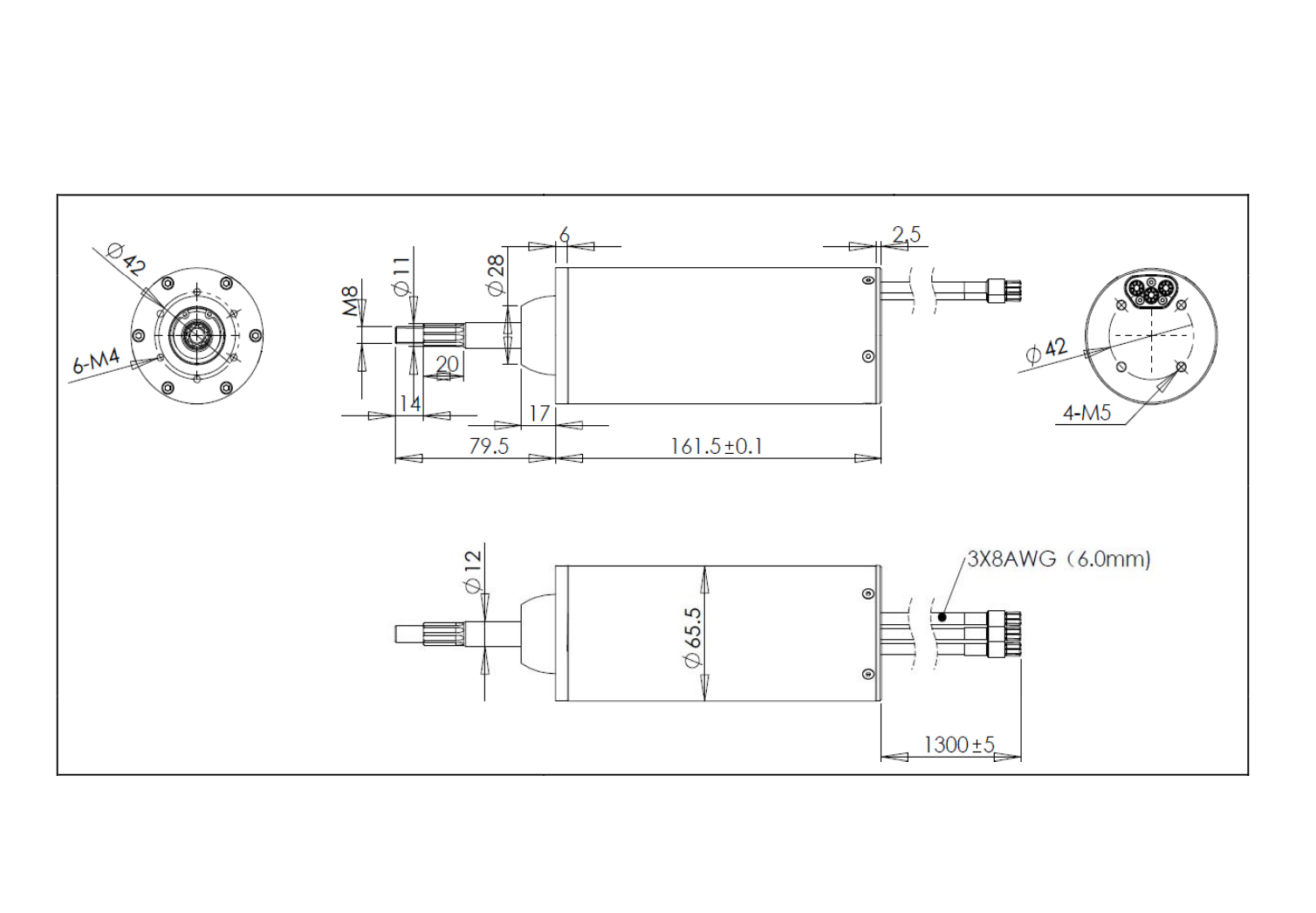

65162-100KV

Shell Dimension(mm)

D65.5XL161.5

Motor Construction

18N/6P

Chip Spec

D61xd34xL100/0.2

magnets dimension& spec

R16XL101(45SH) Magnet stagger10°

Extension shaft length(mm)

62.5

shaft diameter(mm)

Φ12*M8*grooves

Plug(mm)

8.0mm

Extension wire length(mm)

1300

Appearance color

Full Black

Copper wire specifications

0.38X25X6M

winding

3Y

resistance(mΩ)

68.9./69.3./68.8

Inductance(uH)

243.4/243.9/242.1

KV(RPM/V)

100KV

Current without sensor at8.4V

3.2A(actual measurement102KV)

Current with sensor at8.4V

NA

Timing

NA

Operation Voltage

9.5-12S(40-50.4V)

Speed/8.4V(RPM/8.4V)

865

max current(A)

120A

Max Power (W)

6KW

Insulation voltage/Leak current

AC500V/1MA/3S

efficiency

89%

working temp. limit

120℃

weight

2.8KG

Hobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric SurfboardHobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric SurfboardHobbysky IP68 65162 Waterproof Motor 100KV Brushless Hall Sensored Inrunner Engine 6000w for RC Boat Electric Surfboard



Packaging & Shipping


Weight:

Net Weight: 2.8KG

Gross weight: 2.96KG

Packed weight (including the weight of the outer carton shipped): 3.2KG


Package Size: 30cm*15cm*12cm;

Packing box size (including the size of the outer carton shipped):33cm*17cm*15cm;
