Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Specifications
IP Rating :
IP55
Speed Rpm :
349RPM
Usage :
Boat, Car, Electric Bicycle, Smart Home, robot
MOQ :
Low MOQ
Type :
DC Brushless Motor
inner diameter of stator :
58.5m
Brand Name :
HOBBYSKY
Payment Terms :
D/A,D/P,T/T,Paypal
Efficiency :
90%
nominal voltag :
24V
size :
8110
Construction :
Permanent Magnet
Protect Feature :
Drip-proof
Warranty :
3 months ~ 1 year
weight :
206g
Dynamic balance :
YES
KV customization :
YES
Frame :
81 mm(3.19in)
Torque :
2.4N/m(0.01lbf/in)
Motor Mounting Type :
Flange Mount
Rated voltage :
24 V DC
Model Number :
HS8110
Packaging Details :
Conventional Paper Boxes&Customization
Supply Ability :
5000pcs per Month
Speed(RPM) :
349
Place of Origin :
Guangdong, China
Testing :
YES
Price :
Contact us,get the best price
Max speed :
566RPM
Appearance Customization :
YES
stall torque :
2.4N/M
stall current :
6.51a
nominal torque :
0.93N/M
Continuous Current(A) :
2.5(A)
nominal current :
2.5A
Rated Power :
60 W
Delivery Time :
1-2weeks after payment done
Commutation :
Brushless
nominal speed :
349RPM
Description
Outline drawing
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEMHobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM
Products Description

Hobbysky Robot Joint Actuator Module Arm Kit High Torque 8110 Frameless Brushless DC Motor 81*10MM Hollow Shaft Servomotor OEM

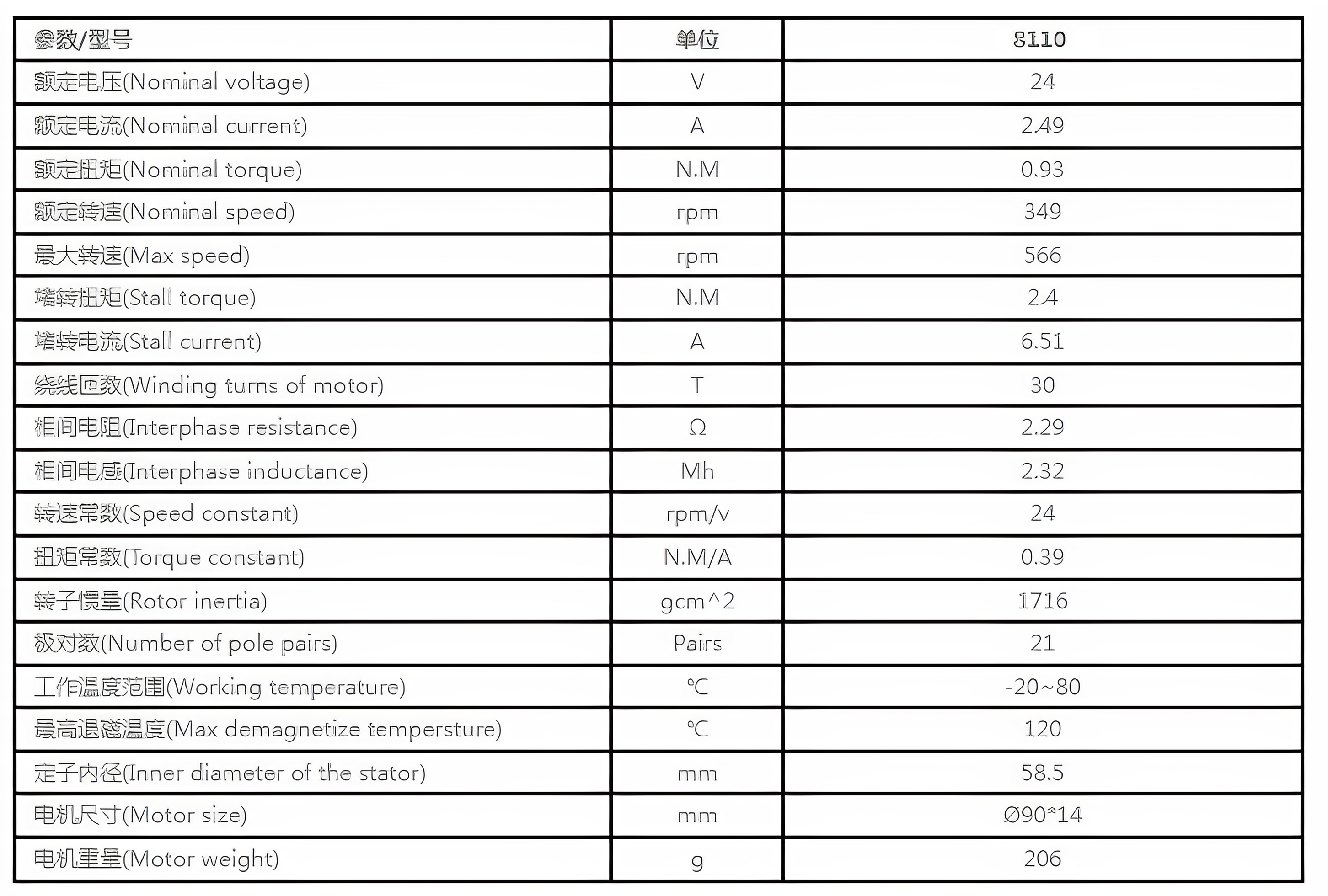

(Nominal voltage) V 24 (Nominal current) A 2.49 (Nominal torque) N.M 0.93 (Nominal speed) rpm 349 (Max speed) rpm 566 (Stall torque) N.M 24 (Stall current) A 6.51 (Winding turs of motor) T 30 (Interphase resistance) 2.29 (Interphase inductance) Mh 2.32 (Speed constant) rpm/v 24 (Torque constant) N.M/A 0.39 (Rotor inertia) gcm^2 1716 (Number of pole pairs) Pairs 21 (Working temperature) ℃ -20~80 (Max demagnetize tempersture) ℃ 120 Inner diameter of the stator) mm 58.5 (Motor size) mm 090*14 (Motor weight) 206
