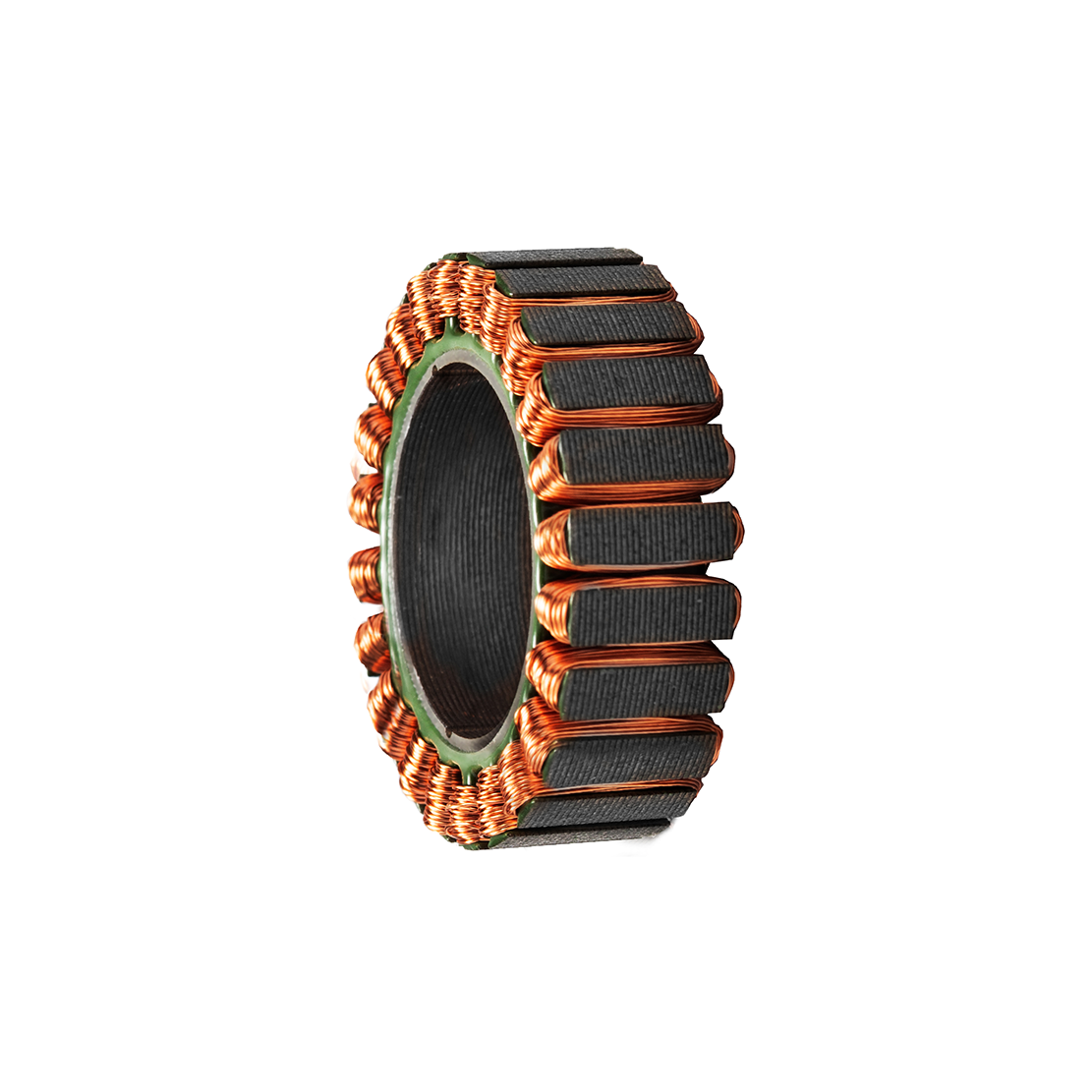

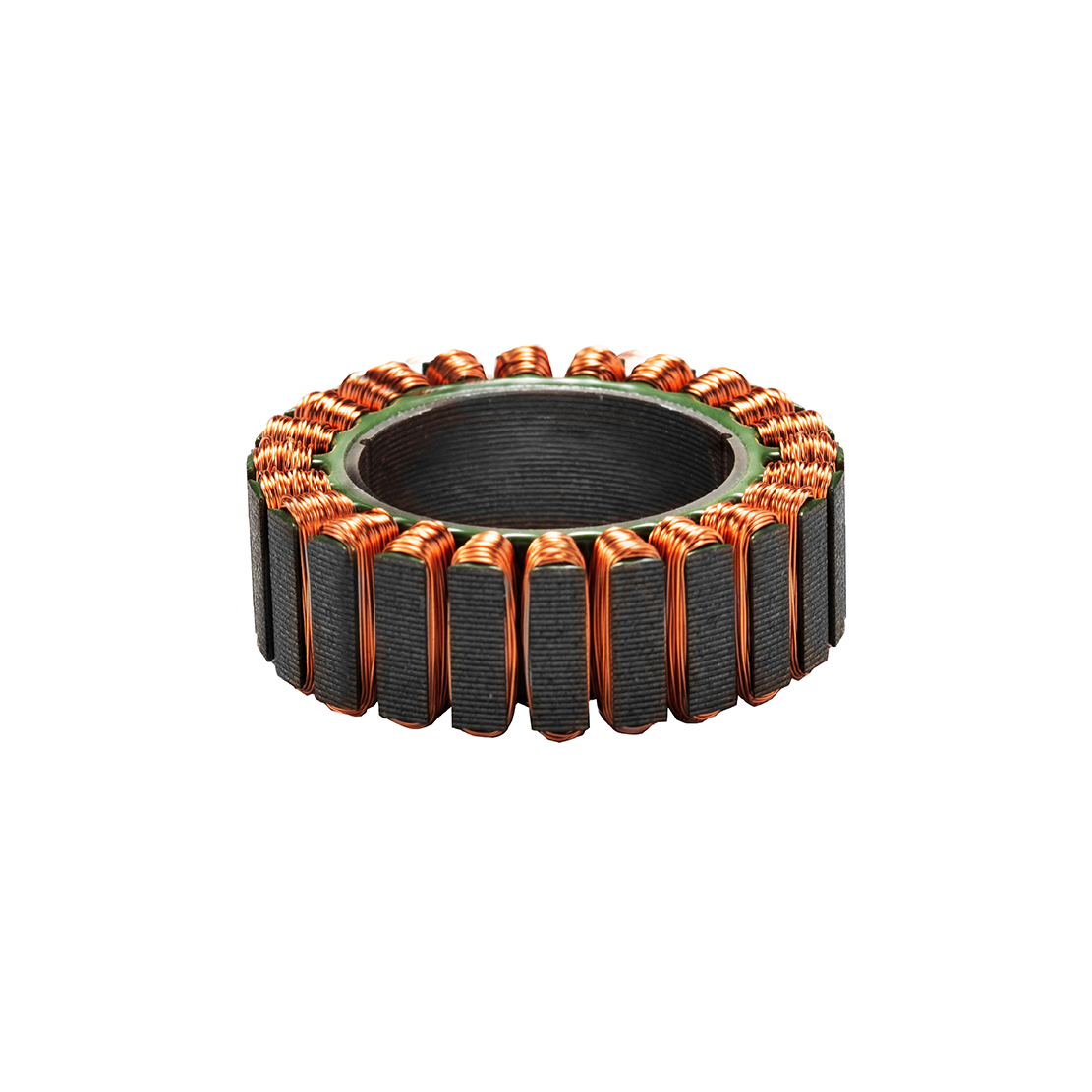

Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 3510 Frameless Brushless DC Motor 35*10MM Hollow Shaft Servomotor OEM
Specifications
Place of Origin :
Guangdong, China
Efficiency :
90%
nominal torque :
0.11N/M
inner diameter of stator :
22MM
Construction :
Permanent Magnet
Rated Power :
6.5W
Nominal current :
0.53A
MOQ :
Low MOQ
Model Number :
HS3510
Frame :
35 mm
Usage :
Boat, Car, Electric Bicycle, Model airplane, scooter, bicycle assist, electric car modification, surfboard
KV customization :
YES
Protect Feature :
Drip-proof
Torque :
0.8-1.6N/m
Packaging Details :
Conventional Paper Boxes&Customization
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Nominal voltag :
12V
Payment Terms :
D/A,D/P,T/T,Paypal
Warranty :
3 months ~ 1 year
Brand Name :
HOBBYSKY
Delivery Time :
1-2weeks after payment done
Dynamic balance :
YES
Speed(RPM) :
363
Testing :
YES
Supply Ability :
5000pcs per Month
stall current :
0.8A
Appearance Customization :
YES
size :
35*10
weight :
47G
Price :
Contact us,get the best price
Commutation :
Brushless
stall torque :
0.16N/M
Max speed :
865RPM
Continuous Current(A) :
0.53A
nominal speed :
363RPM
Rated voltage :
12 V DC
Description
nominal voltag
V
12
nominal current
A
0.53
nominal torque
N/M
0.06
nominal speed
RPM
363
Max speed
RPM
965
stall torque
N/M
0.08
stall current
A
0.8
size
MM
35*10
weight
G
156
inner diameter of stator
MM
47

Product Description.

parameter WK3510 WK3510CH (Nominal voltage) V 12 12 (Nominal current) A 0.53 0.53 (Nominaltorque) N.M 0.11 0.06 (Nominalspeed) rpm 363 363 (Max speed) rpm 965 965 (Stall torque) N.M 0.16 0.08 (Stall current) A 0.8 0.8 (Winding tums of motor) 40 40 (Interphase resistance) Ω 8.53 8.53 (Interphase inductance) Mh 1.9 1.9 (Speedconstant) rpm/v 80 80 (Torque constant) N.M/A 0.2 0.1 (Rotor inertia) gcm^2 76 33 (Number ofpole pairs) Pairs 11 11 (Workingtemperature) ℃ -20~80℃ -20~80℃ (Max demagnetize tempersture) ℃ 120 120 (Inner diameter of the stator) mm 22 22 (Motor size) mm Ø40*13.7 Ø38.413 (Motor weight) G 47 36 ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
