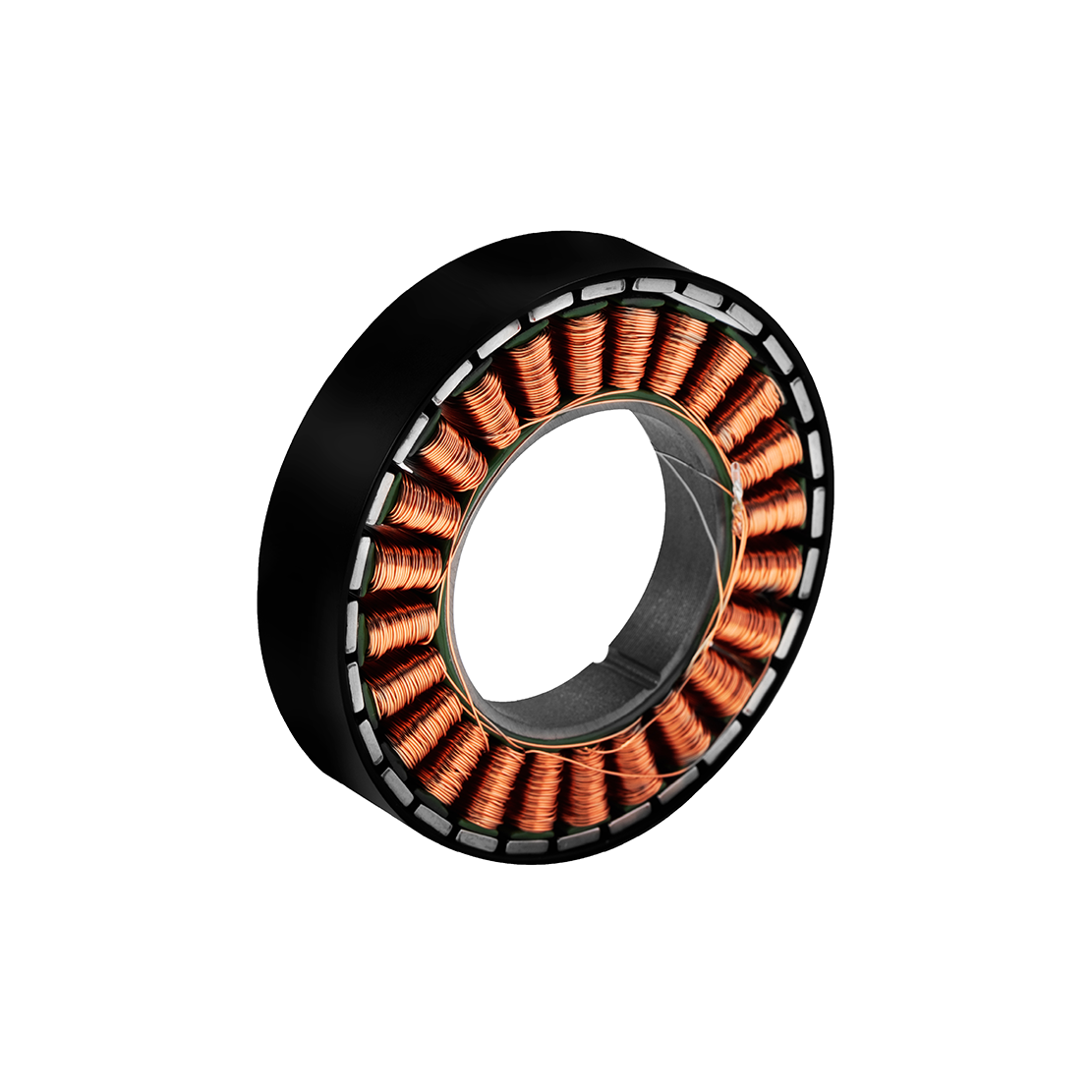

Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 6025 Frameless Brushless DC Motor 60*25MM Hollow Shaft Servomotor OEM
Specifications
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Nominal voltag :
36V
Warranty :
3 months ~ 1 year
Delivery Time :
1-2weeks after payment done
Efficiency :
90%
nominal torque :
1.77N/M
Supply Ability :
5000pcs per Month
Frame :
60 mm
Usage :
Boat, Car, Electric Bicycle, Model airplane, scooter, bicycle assist, electric car modification, surfboard
Protect Feature :
Drip-proof
Torque :
01.77-2.68N/m
MOQ :
Low MOQ
Construction :
Permanent Magnet
Rated Power :
270W
Nominal current :
7.4A
Price :
Contact us,get the best price
Packaging Details :
Conventional Paper Boxes&Customization
Payment Terms :
D/A,D/P,T/T,Paypal
size :
60*25
weight :
345G
Testing :
YES
KV customization :
YES
Speed(RPM) :
504
Brand Name :
HOBBYSKY
Dynamic balance :
YES
Appearance Customization :
YES
stall current :
10.68A
Commutation :
Brushless
stall torque :
2.68N/M
Place of Origin :
Guangdong, China
Max speed :
702RPM
Model Number :
HS6025
Rated voltage :
36 V DC
Continuous Current(A) :
7.4A
nominal speed :
504RPM
Description
Products Description
nominal voltag
V
36
nominal current
A
7.4
nominal torque
N/M
1.77
nominal speed
RPM
504
Max speed
RPM
720
stall torque
N/M
2.68
stall current
A
10.67
size
MM
60*25
weight
G
345

Product Description.

(Nominal voltage) V 36 Nominal current) A 7.4 (Nominal torque) N.M 1.77 (Nominal speed) rpm 504 (Max speed) rpm 720 (Stall torque) N.M 2.68 (Stall current) A 10.67 (Winding tums of motor) T 30 (Interphase resistance) 3.5 (Interphase inductance) Mh 10.05 (Speed constant) rpm/v 20 (Torque constant) N.M/A 0.23 (Rotor inertia) gcm^2 1645 (Number of pole pairs) Pairs 14 (Working temperature) -20~80 (Max demagnetize tempersture) ℃ 120 (Inner diameter of the stator) mm 36 (Motor weight) 345 ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
