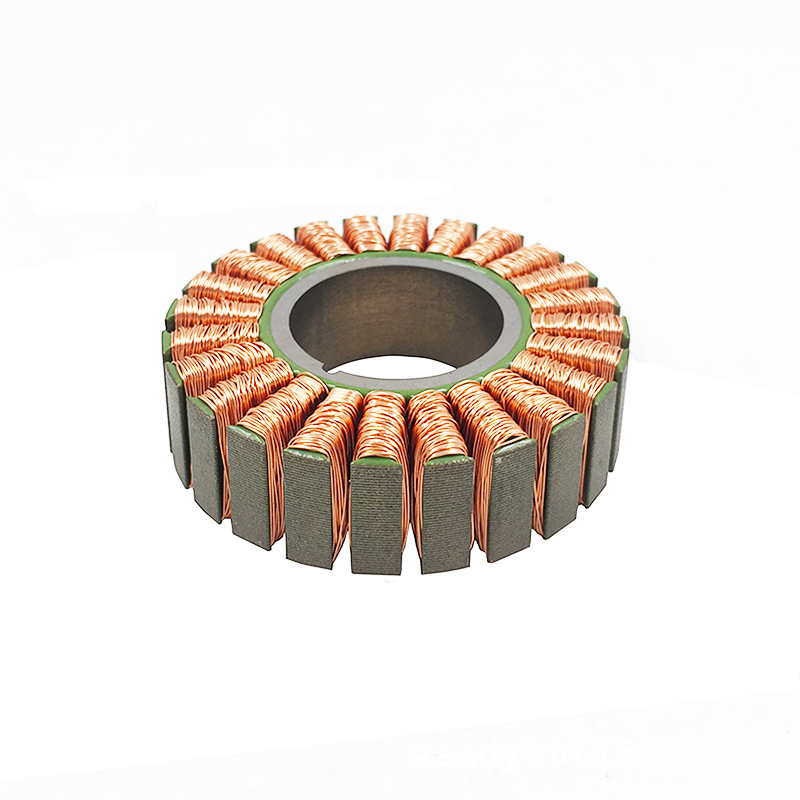

Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Hobbysky Robot Joint Actuator Module Arm Kit High Torque 5215 Frameless Brushless DC Motor 52*15MM Hollow Shaft Servomotor OEM
Specifications
Motor Mounting Type :
Flange Mount
Type :
DC Brushless Motor
Nominal voltag :
24V
Warranty :
3 months ~ 1 year
Delivery Time :
1-2weeks after payment done
Efficiency :
90%
nominal torque :
0.76N/M
inner diameter of stator :
36MM
Place of Origin :
Guangdong, China
Construction :
Permanent Magnet
Rated Power :
50W
Nominal current :
1.12A
KV customization :
YES
Appearance Customization :
YES
Frame :
60 mm(2.36in)
Usage :
Boat, Car, Electric Bicycle, Model airplane, scooter, bicycle assist, electric car modification, surfboard
MOQ :
Low MOQ
Protect Feature :
Drip-proof
Torque :
0.8-1.6N/m(0-0.01lbf/in)
Speed(RPM) :
300
Brand Name :
HOBBYSKY
stall current :
1.69A
size :
52*15
weight :
167G
Dynamic balance :
YES
Max speed :
336RPM
Payment Terms :
D/A,D/P,T/T,Paypal
Rated voltage :
36 V DC
Model Number :
HS5215
Packaging Details :
Conventional Paper Boxes&Customization
Continuous Current(A) :
1.3
nominal speed :
221RPM
Testing :
YES
Price :
Contact us,get the best price
Supply Ability :
5000pcs per Month
Commutation :
Brushless
stall torque :
1.15N/M
Description
nominal voltag
V
24
nominal current
A
1.12
nominal torque
N/M
0.76
nominal speed
RPM
221
Max speed
RPM
336
stall torque
N/M
1.15
stall current
A
1.69
size
MM
52*15
weight
G
167




Product Description.

(Nominal voltage) V 24 (Nominal current) 4 1.12 (Nominaltorque) N.M 0.76 (Nominal speed) rpm 221 (Max pseed) rpm 336 (Stall torque) N.M 1.15 (Stall current) A 1.69 (Winding turns of motor) 60 (Phase to phase resitance) Ω 11.8 (Phase to phase inductance) Mh 7.8 (Speed constant) rpm/v 14 (Torque constant) N.M/A 0.68 (Rotor inertia) gcm^2 667 (Number of pole pairs) 11 (Motor weight) 167 (Working temperature) -20/80 (Max demagnetize tempersture) ℃ 120 ATTENTION: 1. Please make sure your motor has enough cooling while running. 2. Keep motors away from moisture, dust, scrap and small items to avoid damages. TIPS: ★ We welcome OEM orders, KV value, motor color, logo all can be customized.
