Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

1700c Electric Furnace High Temperature Resistant Rod Silicon Carbide Tube Heating Elements Sic Heater

Description
Feature: High Temperature Oxidation Resistance: High
Type: U Shape (U Type) Temperature: 700-1700c
Operating Temperatures: Up To 1800°C Working Lifetime: 10000h
Usage: Electrical Furnace Length: As Requested
Product Type: Electric Heating Elements Max Max Temperature: 1800c
Corrosion Resistance: Excellent
Highlight:

1700c Sic Heater

,

High Temperature Resistant Sic Heater

,

Rod Silicon Carbide Tube Sic Heater

Products Description
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Silicon Carbide Heating Element Silicon carbon rod is a rod-shaped or tubular non-metallic high-temperature electric heating element made from high-purity silicon carbide as the main raw material, processed into blanks according to a certain material ratio, and sintered by high-temperature silicification and recrystallization at 2200 ℃. The normal operating temperature in an oxidizing atmosphere can reach 1450 ℃, and continuous use can last up to 8000 hours.Silicon carbide heating elements have the advantages of simple and convenient operation, long service life, and wide range of applications.The length can be designed. We have various silicon carbide products: 1. Silicon carbide Pipe&Tube&Beam&Roller&Pillar&Heating Element 2. Reaction Sintered Silicon carbide (RBSIC) 2. Recrystallized Silicon Carbide ceramic (RSIC) 3. Nitride Bonded Silicon Carbide ceramic (NBSIC) 4. Sintered Silicon Carbide (SSiC)
Features
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Product Advantages: 1. Dimensional stability at high temperatures, resistance to deformation and high strength at high temperatures 2. Resistance to thermal shock, abrasion and corrosion 3. Anti-oxidation and erosion resistance 4. high strength, good thermal conductivity, and no bending deformation 5. long service life, convenient replacement advantages
Specification
Name:
SiC Heating Element
Shape:

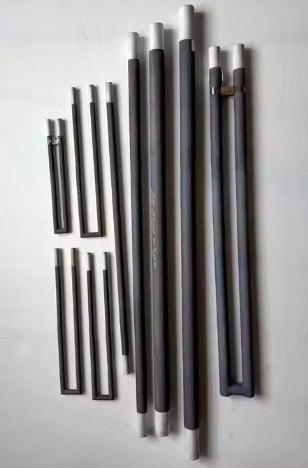

ED, SC, SCR, Dumbbell, U, W and other special shape
Used temp:
UP TO 1400C
Product process:
Made into blank, silicided under high temperature and re-crystallized
We can produce various specifications SiC heating element according to your need.
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Product Application
Silicon Carbide Heating Element Application It can be widely used in various heat treatment electric furnaces, metallurgy, non-ferrous metal smelting, power, steel plant slag trenches, coal chemical industry, mining, transportation pipelines, etc. Suitable for industrial furnaces such as metallurgical sintering furnaces, medium frequency heating forging furnaces, tunnel kilns, shuttle kilns, as well as kilns in the sanitary ceramics and electric ceramics industries.
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Packing & Delivery
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
Quality control:Electric Furnace Silicon Carbide Tube Sic Heater 1700c High Temperature Resistant
