Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

Customizable Silicon Carbide Heating Elements For Oven

Description
Highlight:

Silicon Carbide Heating Elements

,

Oven Silicon Carbide Heating Elements

Product Description
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
Outer Diameter (mm)
Hot zone ( mm)
Cold zone (mm)
Overall length(mm)
Range of resistance
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0

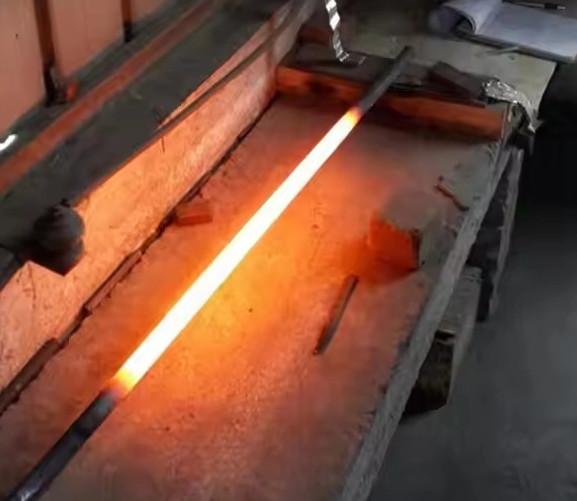

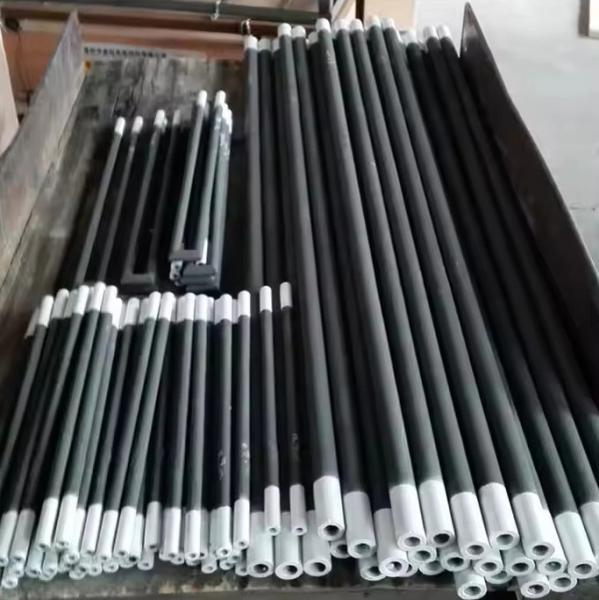

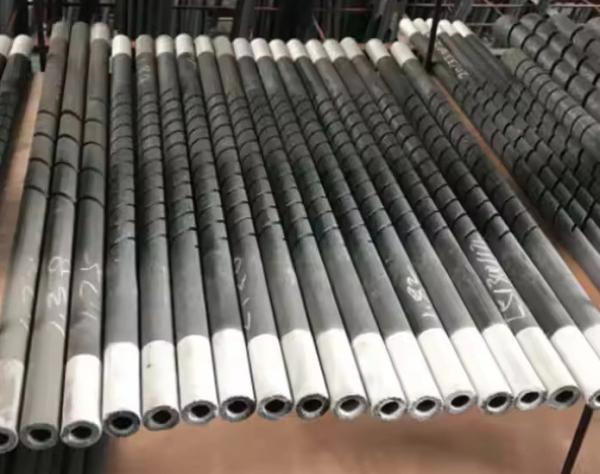

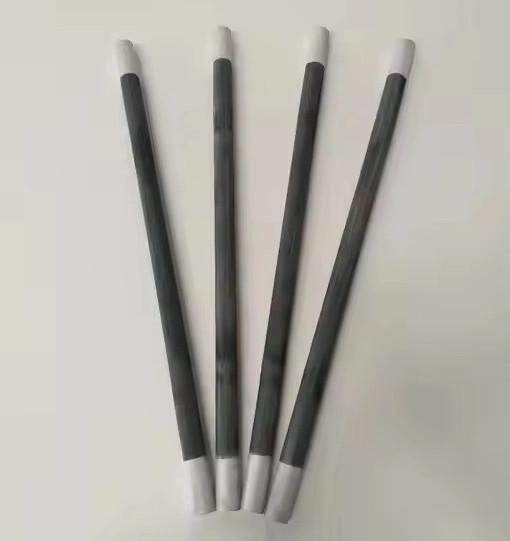

Photo Shows
Customizable Silicon Carbide Heating Elements Shock Resistant For Oven

Features of silicon carbide rod

1 withstands as high as 1600°C
2 high strength and excellent shock resistance
3 heat source is free of noise and air pollution
4 anti-oxidization, anti- corrosion
5 easy to installation and maintenance

How to order ? Pls provide this informations:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

Application

Thermoforming & Vacuum Forming Machines
PVC Pipe Belling / Socketing Machines
Hot Stamping Machines
Heat Therapy Equipment
Shrink Packaging

Quality control:Customizable Silicon Carbide Heating Elements Shock Resistant For Oven
