Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

U Shape High Temperature Spiral Silicon Carbide Electric Heating Elements Sic Heater For Furnace 1400°C

Description
Highlight:

U Shape Sic Heater

,

High Temperature Sic Heater

,

Furnace Sic Heater

Product Description

Equal-diameter silicon carbide rods are substitutes for thick-end silicon carbide rods, which have the advantages of low end resistance, long service life, and energy saving: commonly used in rare earth phosphors, electronics, magnetic materials,powder metallurgy, precision casting And other industries, as heating elements for pusher furnaces, mesh belt furnaces, trolley furnaces, and box furnaces.

How to order a silicon carbide heater?
Type
ED
Outer diameter (OD)
--mm
Overall length (OL)
--mm
Hot zone length (HZ)
--mm
Cold end length (CZ)
--mm
Resistance
Ω

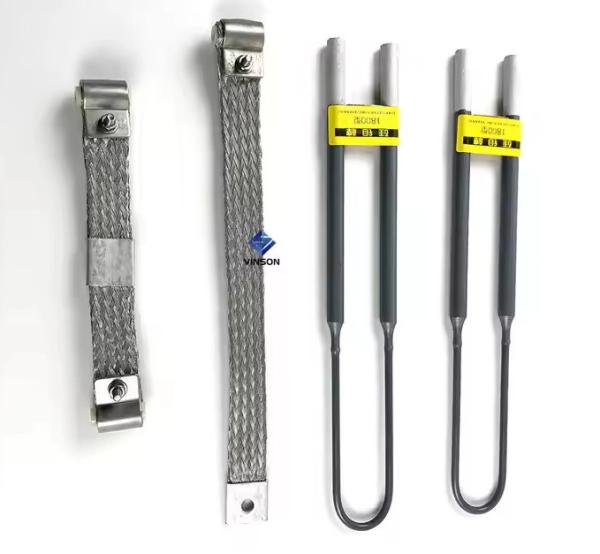

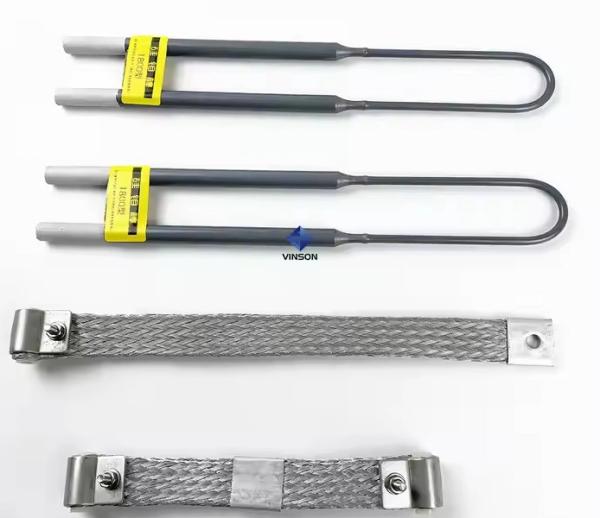

Detailed Images
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C

please send all information below if u have request

Type:U
Outer diameter (OD): mm
Overall length (OL): mm
Hot zone length (HZ): mm
Cold end length (CZ): mm
Shank spacing (A): mm
Resistance:Ω

Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Packing & Delivery
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
Quality control:Silicon Carbide Electric Heating Elements Spiral Sic Heater U Shaped For Furnace 1400°C
