U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

U W I Type Industrial High Temperature Sic Heating Element Silicon For Electric Furnace

Description
Highlight:

Electric Furnace Sic Heating Element

,

High Temperature Sic Heating Element

,

U W I Sic Heating Element

Products Description
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace

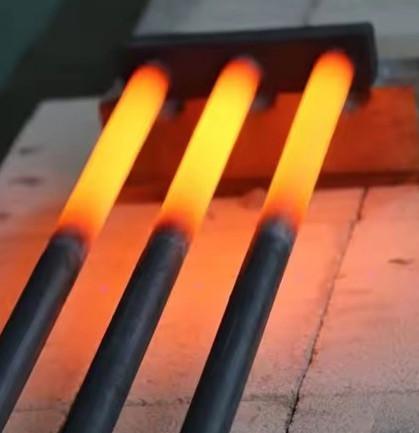

Silicon carbide heating element is a non-metallic high-temperature heating element. It is made of high-quality green silicon carbide as the main material, made into blanks, siliconized at high temperature, and recrystallized. It is the most popular economical heating element, capable of operating in hot and harsh environments.
Specification
Outer Diameter
(OD, mm)
Hot zone
(HZ, mm)
Cold zone
(CZ, mm)
Overall length
(OL, mm)
Range of resistance
(ohms)
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0
Note: Specification above are parts of our products for your reference, and we can manufacture according to your special specification.
Details Images
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace

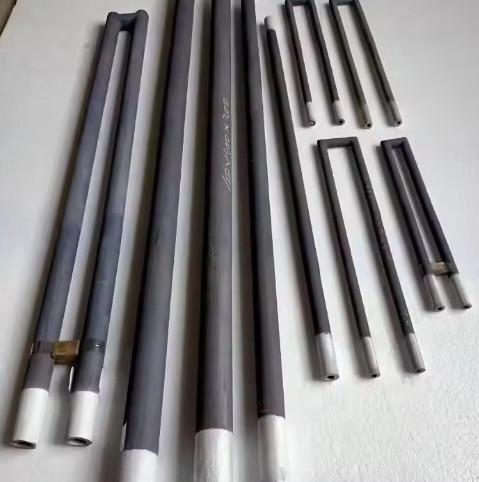

Types
U W I Type Industrial Sic Heating Elements For Electric Furnace
U W I Type Industrial Sic Heating Elements For Electric Furnace
Outer Diameter: OD, (mm) Hot Zone Length: HZ, (mm)
Code Zone Length: CZ, (mm) Overall Length: OL, (mm)
Shank Spacing: A, (mm) Bridge: D, (mm)
