Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

Long Lasting Silicon Carbide Heating Elements For Oven

Description
Highlight:

Silicon Carbide Heating Elements

,

Long Lasting Silicon Carbide Heating Elements

Product Description
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Outer Diameter (mm)
Hot zone ( mm)
Cold zone (mm)
Overall length(mm)
Range of resistance
8
100-300
60-200
240-700
2.1-8.6
12
100-400
100-350
300-1100
0.8-5.8
14
100-500
150-350
400-1200
0.7-5.6
16
200-600
200-350
600-1300
0.7-4.4
18
200-800
200-400
600-1600
0.7-5.8
20
200-800
250-600
700-2000
0.6-6.0
25
200-1200
250-700
700-2600
0.4-5.0
30
300-2000
250-800
800-3600
0.4-4.0
35
400-2000
250-800
900-3600
0.5-3.6
40
500-2700
250-800
1000-4300
0.5-3.4
45
500-3000
250-750
1000-4500
0.3-3.0
50
600-2500
300-750
1200-4000
0.3-2.5
54
600-2500
300-750
1200-4000
0.3-3.0

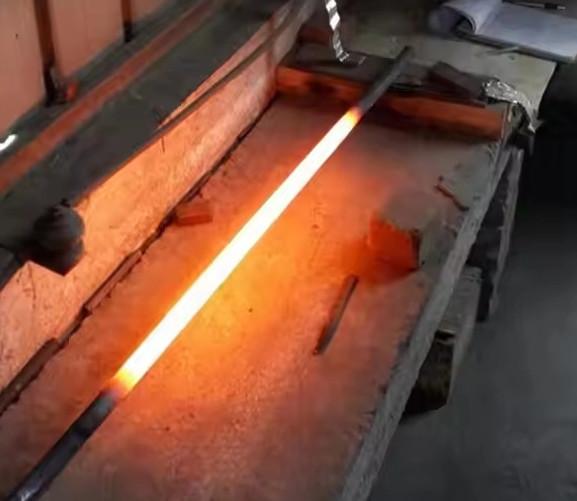

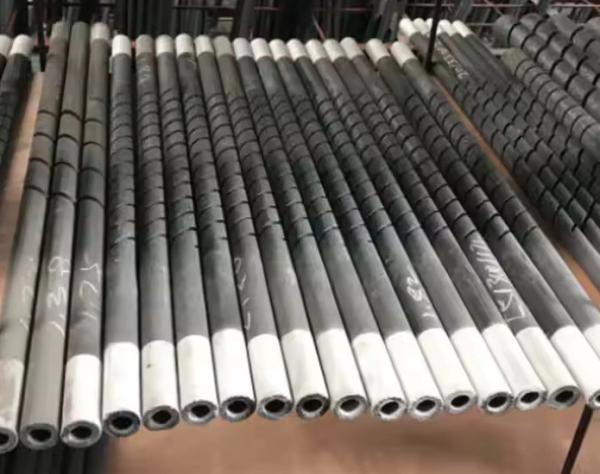

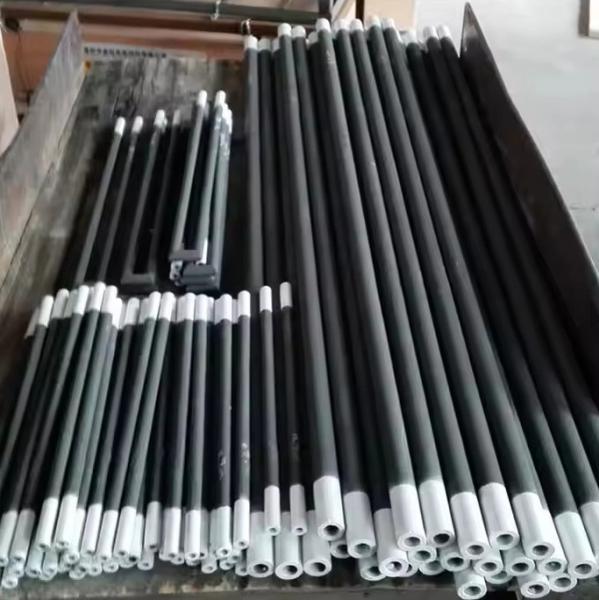

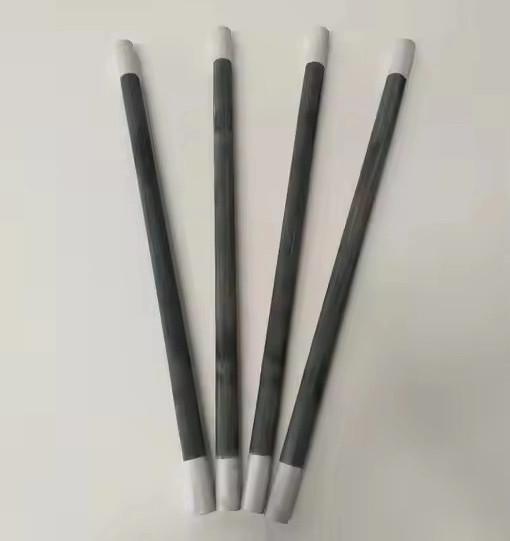

Photo Shows
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven

Features of silicon carbide rod

1 withstands as high as 1600°C
2 high strength and excellent shock resistance
3 heat source is free of noise and air pollution
4 anti-oxidization, anti- corrosion
5 easy to installation and maintenance

How to order ? Pls provide this informations:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

Application

Thermoforming & Vacuum Forming Machines
PVC Pipe Belling / Socketing Machines
Hot Stamping Machines
Heat Therapy Equipment
Shrink Packaging

Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
Anti Corrosion Silicon Carbide Heating Elements 1500℃ For Oven
