High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

High Temperature Sic Heating Elements , 1300℃ Silicon Carbide Rod

Description
Highlight:

1300℃ Sic Heating Elements

,

Silicon Carbide Rod Sic Heating Elements

,

High Temperature Sic Heating Elements

High Temperature SiC Heating Elements , 1300℃ Silicon Carbide Rod

Description
MAX TEMPERATURE:: Up To 1600℃ APPLICATION:: Electric Furnaces And Electric Heating Devices
PRODUCTS:: SiC Heating Elements SHAPE:: ED/U/W/SC/SCR/DB/G/H/DM
POWER SOURCE:: Electric PURITY:: 99.9% High Purity
High Light:

High Temperature SiC Heating Elements

,

1400C SiC Heating Elements

,

1600C Silicon Carbide Rod

High Temperature SiC Heating Elements, 1300°C Silicon Carbide Rod

Application:
Widely used in various high temperatures, up to 1400℃. Electric furnaces and other electric heating devices for magnet, ceramics, powder metallurgy, glass, metallurgy, machinery and other industries.
We have 6 different types of SiC heating rods available in a variety of standard sizes and geometry shapes. The rods can also be custom designed to meet the specific heating needs of your various processes and equipment.

SiC Heating Elements Features:

  • Selecting high purity green SiC powder, to ensure the best foundation for top quality.
  • SiC rod is extruded by 500T press machine, to ensure high-density uniform through the whole length.
  • Excellent resistance rate between heat zone and cold zone, to avoid over-temperature of cold zone to damage the furnace body.
  • Special technology to spread a protect film on the surface of the heating zone, which enhances the Antioxidant property evidently and lengthens the service life.

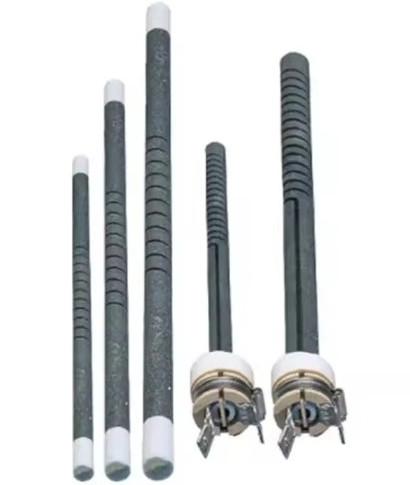

Types:

  • Normal straight rod (GD type)
  • Dumbbell (GC type)

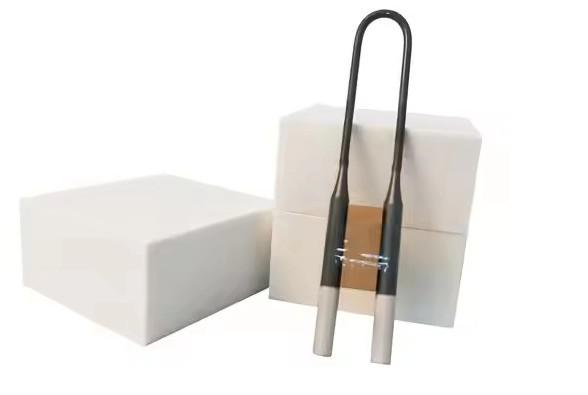

  • U shape (U type)
  • W shape (W type)
  • Single spiral (SD type)
  • Double spiral (SG type)

High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity

Please confirm the following data before order:

1. Type
2. Diameter: OD
3. Heating zone length: HZ
4. Cooling zone length: CZ
5. Total length: OL
6. Resistance (if you have requirement)
7. Please confirm the central distance when you need U type and W type.

High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity

Qualty control:

High Temperature Sic Heating Elements 1300℃ Silicon Carbide Rod 99.9% Purity
