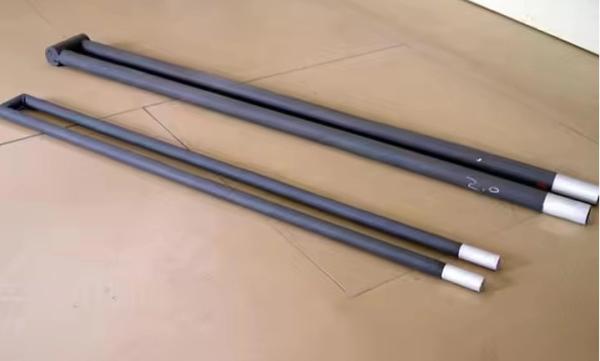

U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

1800 U Type Sic Rod Heater Silicon Carbide Heating Electric Heating Element

Description
Highlight:

U Type Sic Rod Heater

,

Electric Heating Element Sic Rod Heater

,

Silicon Carbide Sic Rod Heater

Products description
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C

Furnace Heating Element


1 withstands as high as 1600°C
2 high strength and excellent shock resistance
3 heat source is free of noise and air pollution
4 anti-oxidization, anti- corrosion
5 easy to installation and maintenance

Material
SiC
Voltage
220 volts, 380 volts, 110 volts
Shapes
Straight type, U type, W type, and etc.
SiC Content
above 99%
Color
gray
Resistence
Uniform resistance
Power
Adjustable
Working temperature
up to 1400C

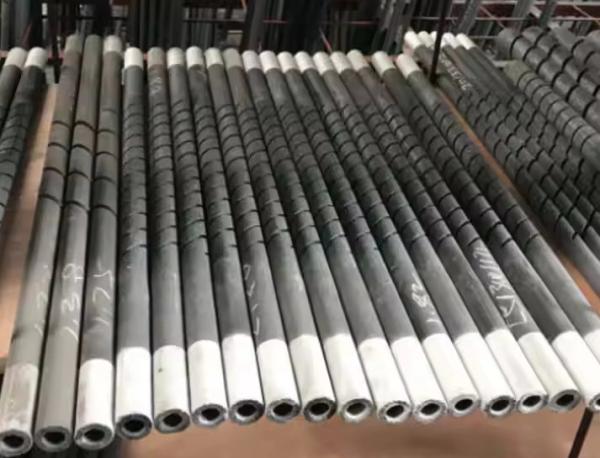

Detailed products
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
ED Type SiC heater
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C

SC Type SiC Heater

U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type SiC Heater
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C

W Type SiC Heater

U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C

DB Type SiC Heater

U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C

SCR Type SiC Heater

When you inquiry, please clarify the following details:

1 Type: rod, U, W, H, spiral and double-spiral types
2 OD,HZ,CZ,OL
3 If type U or type W, please mark terminal distance
4 If you have special requirements about resistance, please inform resistance
5 Quantity

U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
Application

«Aluminum die casting
«Laboratory furnace
«Aluminum melting and holding furnace
«Rotary hearth furnace
«Continuous furnace
«Crucible furnace for non
«Glass Feeder ferrous metals

U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
U Type Electric SIC Silicon Carbide Rod Heater Anti Oxidization 1800C
Quality control:
