Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

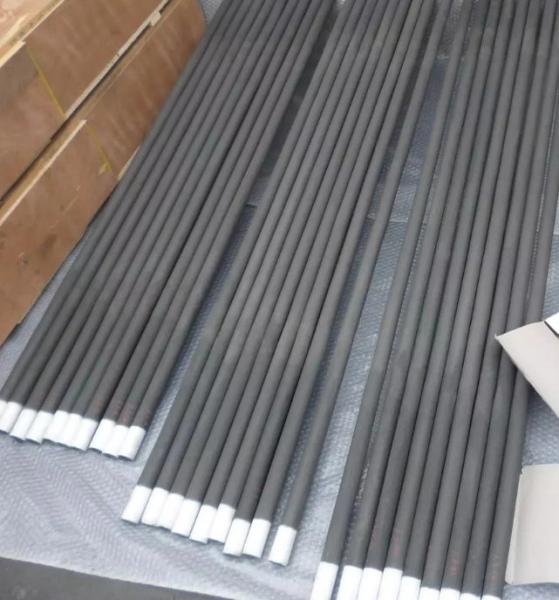

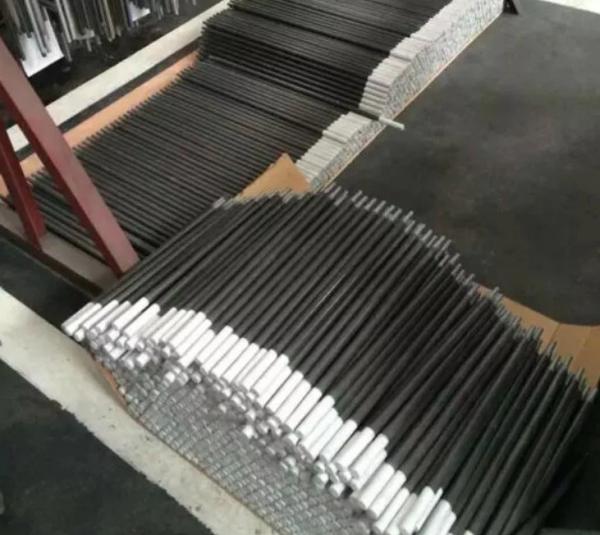

Silicon Carbide Resistance Heater For Float Glass (Tin Bath) melting, Non-ferrous (aluminum, magnesium, copper) melting


Product Description

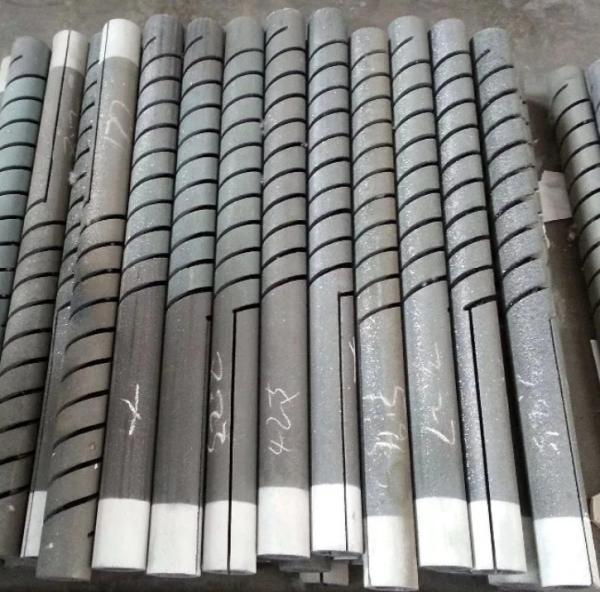

Electric spiral sic heating elements is a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC. It can usually make use for furnance which temperature from 600C-1600ºC. It is widely used in various electric heating element of glass,chemical, electronic material and so on.


Features of spiral sic heating elements
1.withstands as high as 1600°C

2.high strength and excellent shock resistance

3.heat source is free of noise and air pollution

4.anti-oxidization, anti- corrosion

5.easy to installation and maintenance


Quality control:Resistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous MeltingResistance Silicon Carbide Heater For Float Glass Melting , Non-Ferrous Melting
