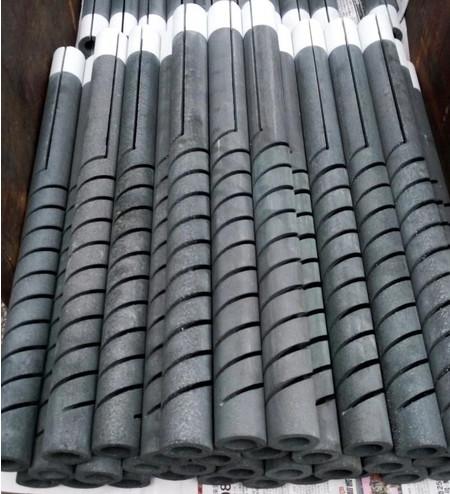

SiC Resistance High Temperature Heating Element Double Helix Type
SiC Resistance High Temperature Heating Element Double Helix Type
SiC Resistance High Temperature Heating Element Double Helix Type
SiC Resistance High Temperature Heating Element Double Helix Type
SiC Resistance High Temperature Heating Element Double Helix Type
SiC Resistance High Temperature Heating Element Double Helix Type
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

SiC Resistance High Temperature Heating Element Double Helix Type


General Description

  1. Production Process: made into blank, silicided under high temperature and re-crystallized.
  2. Character: high-applied temperature, anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintenance.
  3. Usage: used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery.
  4. Physical properties of element
Specific Gravity 2.6~2.8g/cm³ bend strength >300kg
Hardness >9 MOH′S Tensile strength >150kg/cm³
Porosity rate <30% radiancy 0.85


Advices of using the element

  1. In order to keep furnace temperature and the charges uniform of each element, before installation resistance distribution must be carried.
  2. As the element is very brittle, be careful while install and maintain to avoid any damage.
  3. when start to operate the furnace, raise voltage slowly and gradually, never give full load at one time.

The following should be given when describing Silicon Carbide (SiC) Heating Elements:

  1. Type:
  2. OD: Outer Diameter;
  3. HZ: Hot Zone;
  4. CZ: Cold Zone;
  5. OL: Overall Length;
  6. Resistance; Ohms (Ω).

Quality control:

SiC Resistance High Temperature Heating Element Double Helix Type
