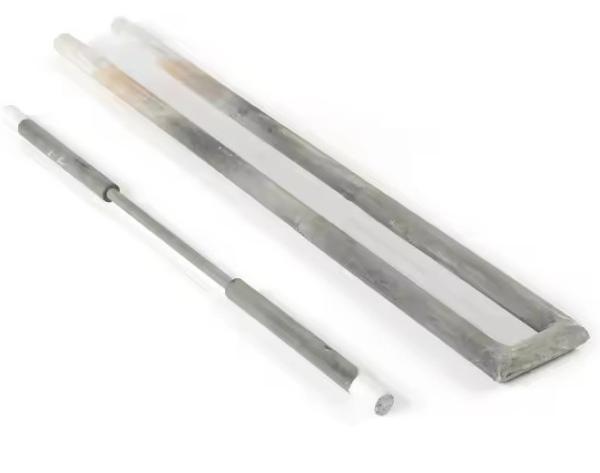

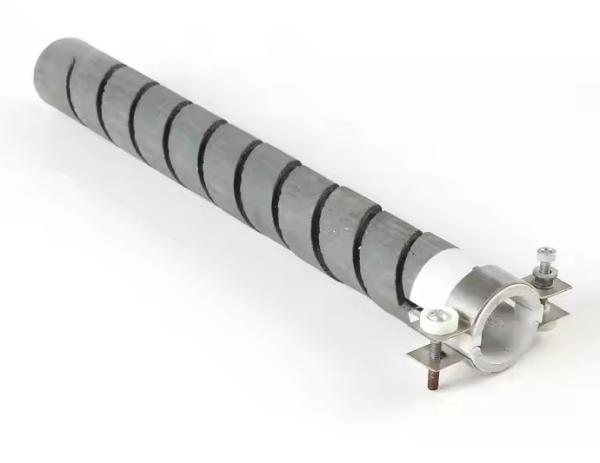

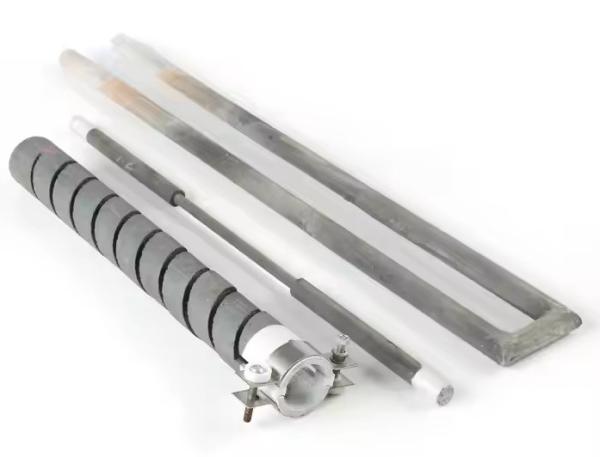

Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Silicon Carbide Heating Element Sic Heaters Rod High Temperature
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

Silicon Carbide Heating Element Sic Heaters Rod High Temperature

Silicon Carbide (SiC) heating elements is a non-metal electric heating element made from SiC as its main raw materials. It has some specific properties, such as low expansion coefficient, little deformation, stable chemical property, long service life, easy installation and maintenance, etc.
Usage: Silicon Carbide (SiC) heating elements can usually make use for furnace which temperature from 600-1600. It can be directly used in an air atmosphere without any protection atmosphere. It is extensively used in the fields of metallurgy, ceramics, glass,
machinery, analysis test, semiconductor, science & research and so on.
Item
Data
SiC content
>75%
Si3N4 content
>22%
Fe2O3
<0.5%
Bulk density
2.6-2.7g/cm3
Apparent porosity
<16%
Cold Crushing strength
150Mpa
Rupture strength at 1200°C
>50Mpa
Thermal conductivity at 800°C
>18w/m.k
Thermal conductivity at 1200°C
>14w/m.k
Thermal expansion coefficient
<4.7x10-6/°C
Size can be customized according to requirements
