Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

1625°C Silicon Carbide Electric Furnace Heating Element Ovens Heating Element

Description
Highlight:

1625°C Silicon Carbide Heating Element

,

Ovens Silicon Carbide Heating Element

,

Electric Furnace Silicon Carbide Heating Element


Product Description

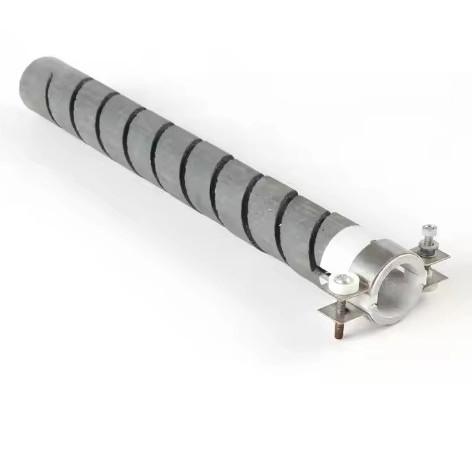

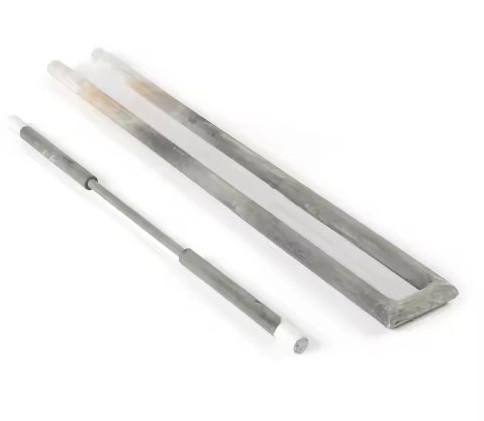

Silicon Carbide (SiC) heating elements is a non-metal electric heating element made from SiC as its main raw materials. It has some specific properties, such as low expansion coefficient, little deformation, stable chemical property, long service life, easy installation and maintenance, etc.
Usage: Silicon Carbide (SiC) heating elements can usually make use for furnace which temperature from 600-1600. It can be directly used in an air atmosphere without any protection atmosphere. It is extensively used in the fields of metallurgy, ceramics, glass,
machinery, analysis test, semiconductor, science & research and so on.

Item

Data

SiC content

>75%

Si3N4 content

>22%

Fe2O3

<0.5%

Bulk density

2.6-2.7g/cm3

Apparent porosity

<16%

Cold Crushing strength

150Mpa

Rupture strength at 1200°C

>50Mpa

Thermal conductivity at 800°C

>18w/m.k

Thermal conductivity at 1200°C

>14w/m.k

Thermal expansion coefficient

<4.7x10-6/°C

Size can be customized according to requirements

Packaging & Shipping

FAQ

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-30 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.

Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: negotiation


Quality control:1625°C Silicon Carbide Electric Furnace Heating Element Ovens Heating Element1625°C Silicon Carbide Electric Furnace Heating Element Ovens Heating Element
