Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element

Description
Highlight:

Straight Sic Silicone Carbide Heating Rods

,

Sic Silicone Carbide Heating Rods

,

Sic Heating Elements Industrial

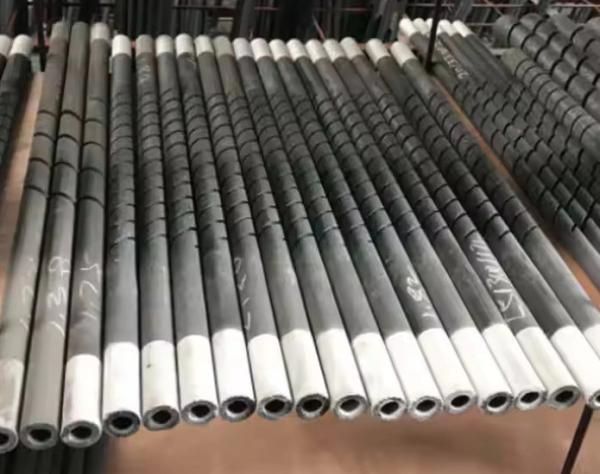

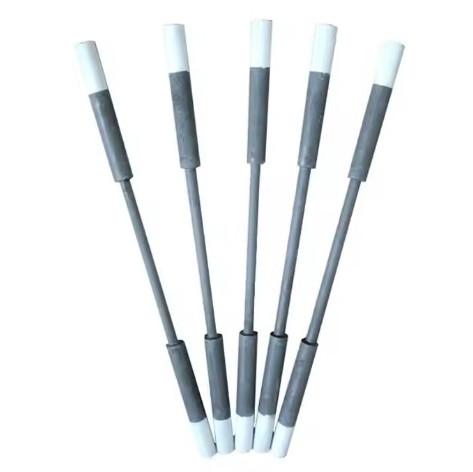

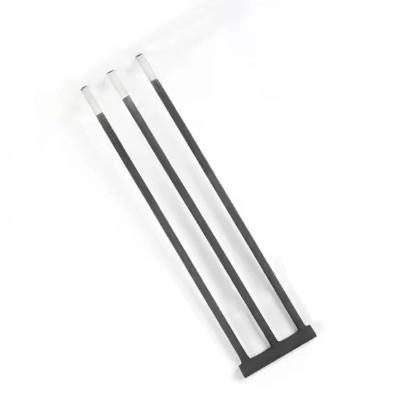

Straight sic silicone carbide heating rods with cold zone and hotzone silicon carbide element


FEATURES

¯¯¯¯¯¯¯¯¯¯¯¯¯¯

  • 1. Withstands as high as 1500 (surface temperature).
  • 2. Generates high heat output per unit surface area, approximately 5-10 times the output of Nichrome wire.
  • 3. High strength and excellent shock resistance.
  • 4. Heat source is free of noise and air pollution.



Item RSiC NSiC SiSiC Si3N4-SiC
Bulk Density(g/cm3) 2.60-2.74 2.75-2.82 >3.02 2.68
Porosity (%) 15 10-12 <0.1 <16
Compression Strength(MPa) ≥600 600-700 -- 180
Bending Strength(MPa) 90-100(20℃) -- 250(20℃) ≥45(20℃)
100-120(1100℃) 160-180(1100℃) 280(1200℃) ≥50(1200℃)
Young’s Modulus(GPa) 280(20℃) 220-260 -- ≥16(1200℃)
Thermal Conductivity(W/MK) 26(1200℃) 15(1200℃) 45(1200℃) --
Thermal Expansion(20-1000 ℃) 4.8×10-6 5.099×10-6 4.5×10-6 ≤4.7×10-6
Max. Working Temperature(℃) 1650 1500 1380 1500
PH Resistance 1-14 -- Excellent --
Moh’s Scale of Thermal Expansion -- -- 13 --
Si3N4 (%) 0 20-40 -- ≥22
a-SiC(%) 98.5 60-80 -- ≥75




Quality control:

Straight Sic Silicone Carbide Heating Rods With Cold Zone And Hotzone Silicon Carbide Element
