1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
1200-1800°C Sic Heating Elements For Electric Furnace
Specifications
Brand Name :
KEGU
Place of Origin :
China
Price :
200-500 yuan/kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
2,000 pcs/month
Packaging Details :
Strong wooden box for Global shipping
Model Number :
Customizable
Material :
SiC
Composition:SiC :
＞85%
Color :
Black
Density :
2.5~2.6g/cm³
Max. Service Temp :
1380℃
Flexural Strength :
70-90 MPa
Size :
Customized
Heat Conduction :
23.26 W/(m·℃)
Resistivity :
1000～2000 Ω·mm2/m
Tensile Strength :
39.2～49 MPa
Max. Service Temp. :
1500℃
Linear Thermal Expansion Coefficient (20-1500℃) :
5×10⁻⁶/℃
Electrical Resistivity :
1000~2000Ω·mm²/m
Description

1200-1800°C Sic Heating Elements For Electric Furnace

Description
Highlight:

1200°C Sic Heating Elements

,

Electric Furnace Sic Heating Elements


Specifications:

1.Heating temperature: 600-1800°C
2. Diameter: 8-54mm
3. Length: 240-4000mm
4. Material: Good quality green SiC powders

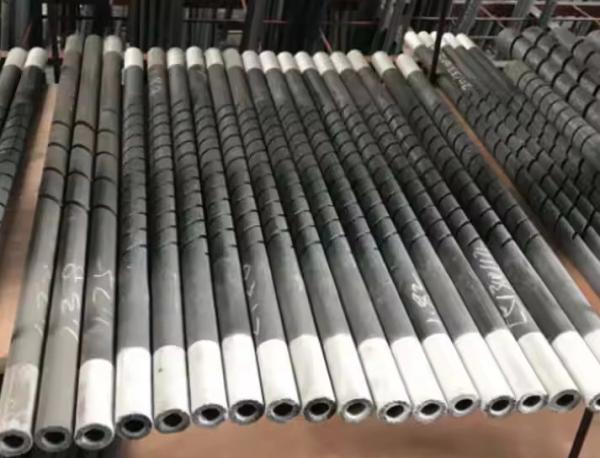

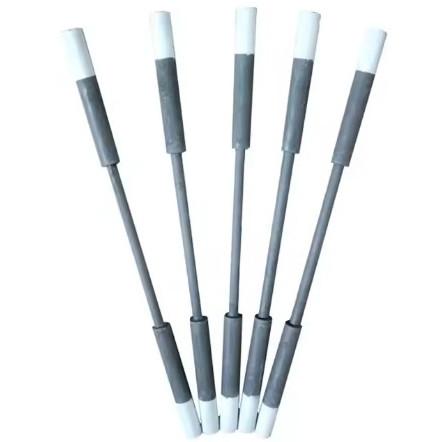

Rod type silicon carbide heating elements are made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments.

Features:

1. Withstands as high as 1800°C (surface temperature),

2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire,

3. High strength and excellent shock resistance,

4. Heat source is free of noise and air pollution.

SiC heating elements usages:

It is used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery.

Physical properties of SiC heating elements:


specific gravity 2.6~2.8g/cm³ bend strength >300kg
hardness >9 MOH′S Tensile strength >150kg/cm³
porosity rate <30% radiancy 0.85



Recommend surface load:


Furnace Temp (°c ) 1100 1200 1300 1350 1400 1450
Surface load of hot zone (W/cm²) <17 <13 <9 <7 <5 <4


When you place order,pls tell us the following data:


1. Outer diameter(OD):mm

2. Length of Hot zone(HZ):mm

3. Length of Cold end(CZ):mm

4. Length of Overall(OL):mm

5. Shank spacing(A):mm

6. Resistance(at 1050C+/-50C):ohms

PACKAGE&TRANSPORT


1200-1800°C Sic Heating Elements For Electric Furnace1200-1800°C Sic Heating Elements For Electric Furnace


Quality control:

1200-1800°C Sic Heating Elements For Electric Furnace
