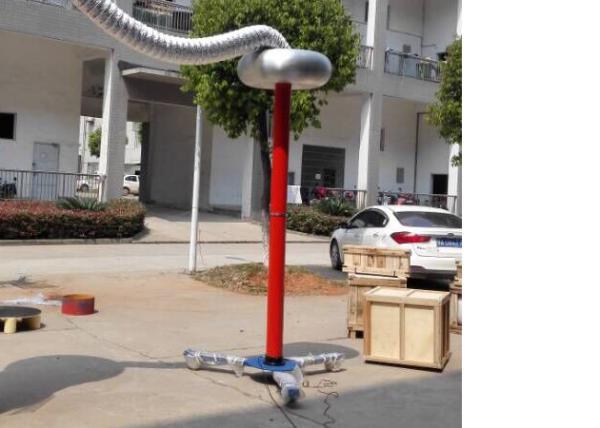

50 KV Hipot Tester Hipot Test Set AC Resonance Withstand Voltage Test System
50 KV Hipot Tester Hipot Test Set AC Resonance Withstand Voltage Test System
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO, CE
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Power :
380V±10%
Customize service :
Provided
Max voltage output :
0~1000KV
Frequency setting resolution :
0.1HZ
Warranty :
1 year free and lifelong maintenance
Test voltage waveform :
sine wave
Description

50 KV Hipot Tester Hipot Test Set AC Resonance Withstand Voltage Test System

1. Product Name:Series AC Resonance Withstand Voltage Test System HYXZ

2. Equipment Description:

It is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the test set is widely applied in GIS, Power cable and generator insulation tester.

3. Technical Parameters:

1 Max voltage output: 0~1000KV;

2 Max output Capacity: 0~6400KVA;

3 Test frequency range: 30~300HZ;

4 Frequency setting resolution: 0.1HZ;

5 Test voltage waveform: sine wave, waveform deviation factor : ≤1%;

6 Power supply: 380V±10%, three-phase 50Hz/60Hz

7 Environment condition: Temperature: 0~50°C

8 Humidity: ≤ 80%RH
