50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
HV test transformer size :
300*240*670mm
Weight :
35kg
Warranty :
1 year free and lifelong maintenance
Measurement quantity :
3 pairs each time
medium:test car size :
1000*770*820mm
Capacity :
3KVA
Description
50HZ HYDZ Insulating Gloves And Boots Tester, Leakage Current Analyzer
Introduction

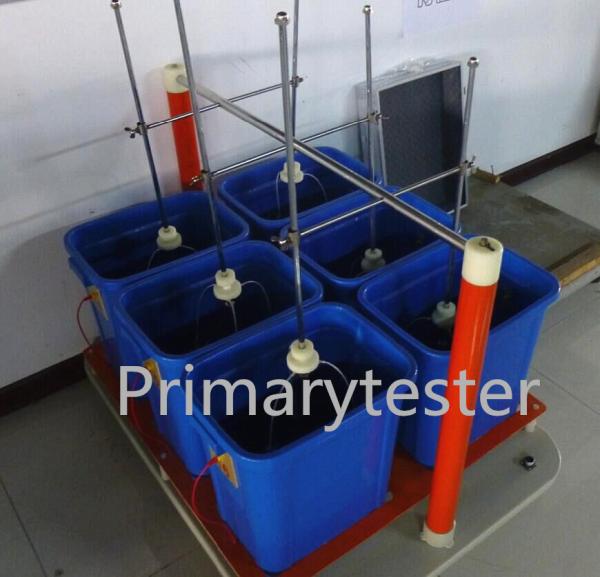

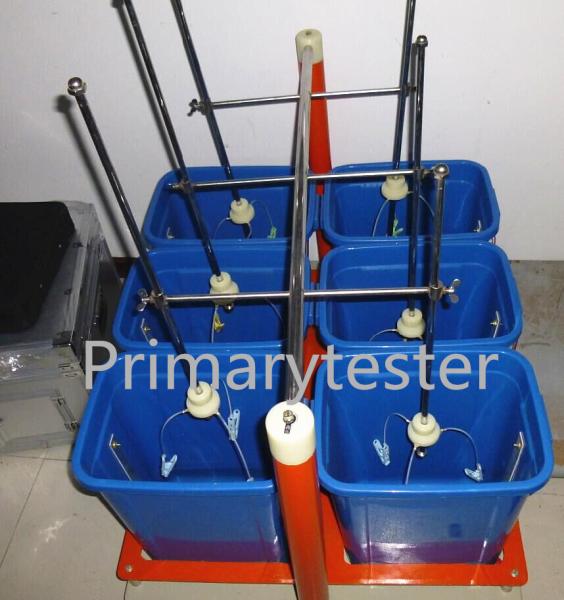

HYDZ insulating gloves and boots tester is application to test leakage current, insulation aging, power frequency of insulating gloves and boots. It can test 3 pairs for each time and to read leakage current of each pair in order to find which one is unqualified. There are trundles in the bottom which make more convenience for moving.

Features

1. Input voltage: 0-220V50HZ

2. Output voltage:0-40kV

3. Capacity:3KVA

4. Measurement quantity:3 pairs each time

5. medium:test car size:1000*770*820mm weight:28kg

Test bench size:660*560*940mm weight:50kg

HV test transformer size:300*240*670mm weight:35kg

working principle

Access 0 ~ 220 v power supply, adjust the power frequency withstand voltage test bench, according to the testing transformer electromagnetic induction principle, to produce 0 ~ 30 kv transformer (0 to 50 kv) power frequency high voltage to the electrodes, gloves (insulating boots) to obtain the specified test voltage. According to the gloves (insulating boots) test procedures, read and record the test parameters.
