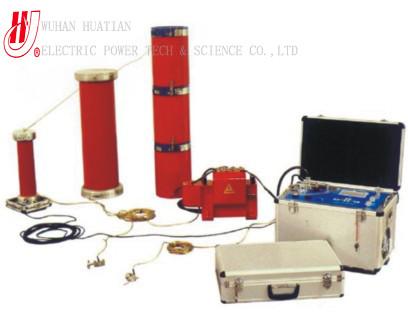

HV Adjustable Variable Frequency Hipot Test Set Adjustable Series Resonance Test Set
HV Adjustable Variable Frequency Hipot Test Set Adjustable Series Resonance Test Set
Specifications
Place of Origin :
Wuhan Hubei China
Brand Name :
Huaying
Certification :
ISO
Model Number :
Huaying Series
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
7 Working Days
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Usage :
testing the insulation ability of insulation materials in power equipment
Customize service :
Acceptable
Warranty :
1 year free and lifelong maintenance.
Feature 1 :
The frequency of test voltage is adjustable
Feature 2 :
the capacitors connected in test circuit in parallel are also adjustable
Application :
GIS, Power cable and generator insulation tester
Description

HV Adjustable Variable Frequency Hipot Test Set Adjustable Series Resonance Test Set

Product Name:

Frequency Adjustable Series Resonance Test Set

Equipment Description:

It is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the test set is widely applied in GIS, Power cable and generator insulation tester.

Technical Parameters:

1 Max voltage output: 0~1000KV;

2 Max output Capacity: 0~6400KVA;

3 Test frequency range: 30~300HZ;

4 Frequency setting resolution: 0.1HZ;

5 Test voltage waveform: sine wave, waveform deviation factor : ≤1%;

6 Power supply: 380V±10%, three-phase 50Hz/60Hz

7 Environment condition: Temperature: 0~50°C

8 Humidity: ≤ 80%RH
