Electrical Safety 220V Hipot Test Set Low Frequency 15KVA to 300KVA Capacity
Electrical Safety 220V Hipot Test Set Low Frequency 15KVA to 300KVA Capacity
Specifications
Brand Name :
Huaying
Model Number :
Huaying Series
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T L/C
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Warranty :
1 year free and lifelong maintenance
HS code :
8504210000
Package :
Wooden box with foam inside
Duty cycle :
Customized
Power :
220V, customized
Capacity Range :
15KVA---300KVA
Description

Electrical Safety 220V Hipot Test Set Low Frequency 15KVA to 300KVA Capacity

Product Name:

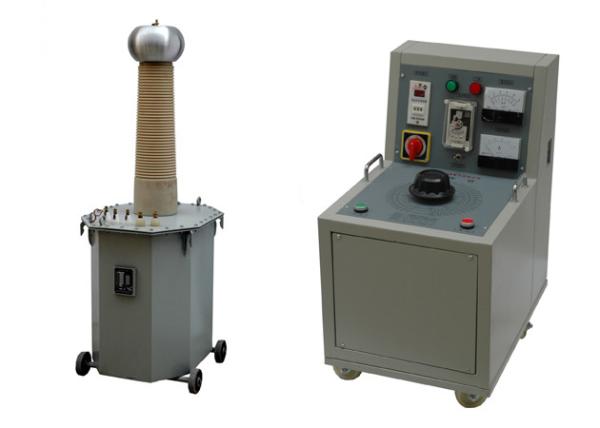

AC DC Oil Hipot Tester YDJ/YDJZ

Equipment Description:

Hipot Tester is applied in power system for insulation test of high voltage equipment.

The typical application of the HIPOT tester is as follow:

1) Power Transformer AC high voltage withstand test

2) Circuit Breaker AC high voltage withstand test

3) High voltage motors high voltage withstand test

4) Voltage/current transformer high voltage withstand test

5) High voltage power source for calibration of high voltage meter

Technical Parameters:

YDJ- AC Oil Hipot Tester

YDJZ-AC DC Oil Hipot Tester

Power Supply

(1)Voltage: AC220V±10%

(2)Frequency: 45~65Hz

(3)Max current: 45.5A

Environment requirements

(1)Ambient temperature: -10℃~40℃

(2)Relative humidity: ≤80%

Safety performance

(1)Insulation resistance: >2MΩ

(2)Leakage current: <3.5mA

(3)Control box dielectric strength: Power line connection to the chassis can withstand 1500V (50Hz RMS) 1 minutes withstand voltage.
