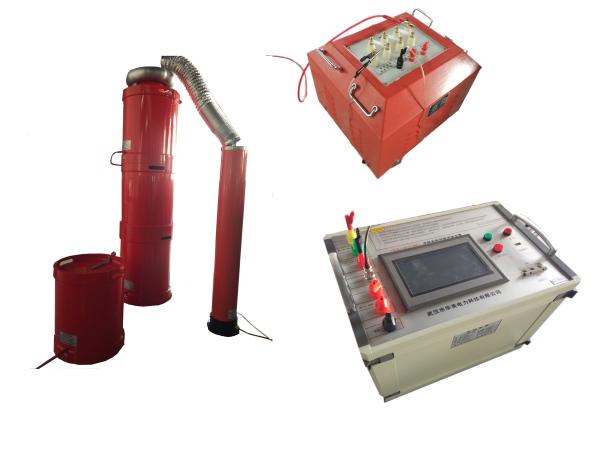

Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing
Specifications
Brand Name :
Huaying
Model Number :
HYXZ
Certification :
ISO
Place of Origin :
Wuhan Hubei China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
200 sets per month
Delivery Time :
7 Working Days
Packaging Details :
Wooden Case
Input voltage :
Three-phase 380V ± 10%, or single-phase 220V ± 10%
Rated power :
5.5-500kW
Output voltage frequency :
20 ~ 300Hz
Output voltage :
0 ~ 400V adjustable
Frequency instability :
≤ 0.02%
Frequency adjustment :
0.1Hz adjustable
Output Current :
13 ~ 1250A
Temperature :
0~50°C
Humidity :
≤90%RH
Description

Variable Frequency Automatic Hipot Test Set Ac Hipot Test Equipment For Cable Testing

1. Equipment Description:

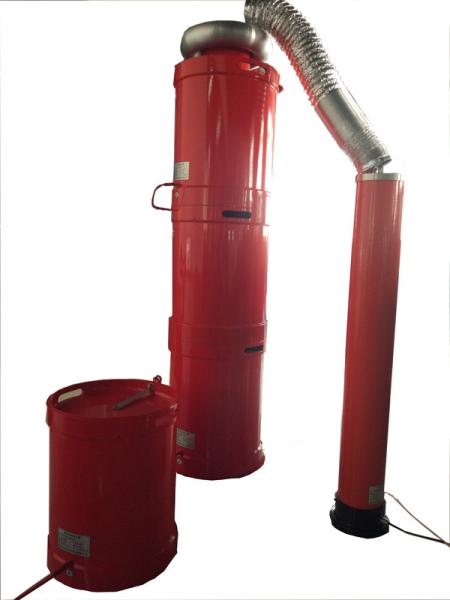

It is applied to testing the insulation ability of insulation materials in power equipment. The frequency of test voltage is adjustable which would lead to series resonance in testing circuit. Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable. That makes the test set is widely applied in GIS, Power cable and generator insulation tester.

2.Technical Parameters:

1 Max voltage output: 0~1000KV;

2 Max output Capacity: 0~6400KVA;

3 Test frequency range: 20~300HZ;

4 Frequency setting resolution: 0.1HZ;

5 Test voltage waveform: sine wave, waveform deviation factor : ≤1%;

6 Power supply: 380V±10%, three-phase 50Hz/60Hz

7 Environment condition: Temperature: 0~50°C

8 Humidity: ≤ 90%RH
