Product Overview

Main Features

• TMax 1200°C
• Carbon steel double air-cooled housing,reduce surface temperture
• Round chamber,High aluminum 1500#ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving
• Bottom electric lifting, loading and unloading freely,high production efficiency.
• Embedded HRE alloy coil wire heating,uniform temperature field
• Stainless steel round chassis, double-layer aluminum tray,good thermal insulation effect
• Type N Thermocouple,long service life
• Heating rate:0℃-20℃/min adjustable
• Smart 50-stage programmable automatic temperature control,high temperature control accuracy
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

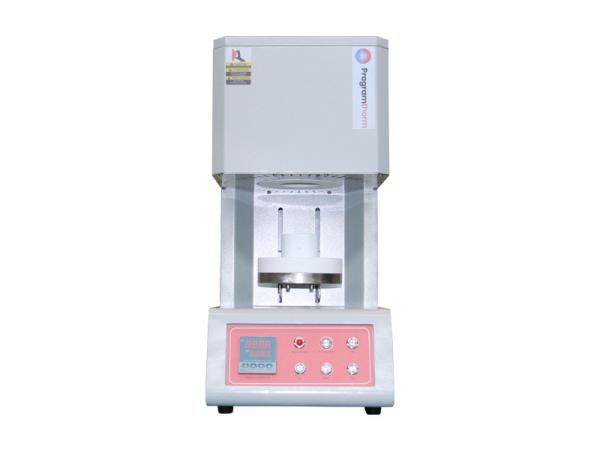

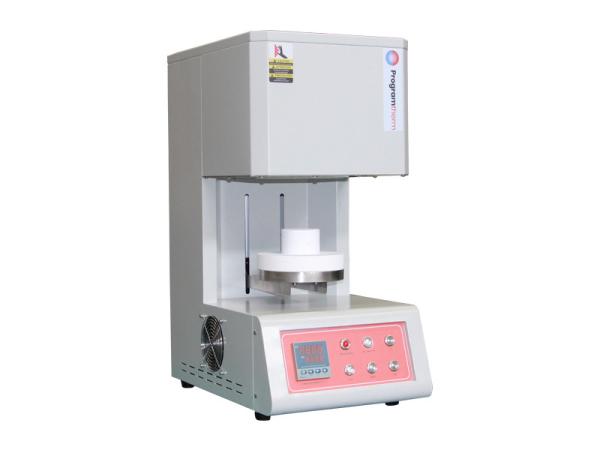

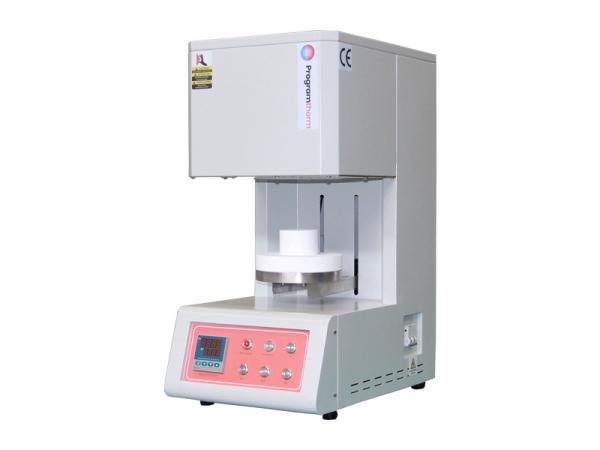

1200°C Small Table-top Lifting Muffle Furnace

• PE D80/80/12 Small Table-top Lifting Muffle Furnace consists of four parts: carbon steel shell, ceramic chamber, temperature control system, and lifting system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
• Siemens electrical components, long service life
• Export quality, ISO,CE certified.

1200°C Small Table-top Lifting Muffle Furnace,Chamber.

• Chamber lining uses High aluminum 1500#ceramic fiber board,CNC carved,round chamber,chamber walls tight coupling.
• Embedded HRE alloy coil wire heated,uniform temperature field,TMax 1200°C.
• Durable N-type thermocouple,long service life.

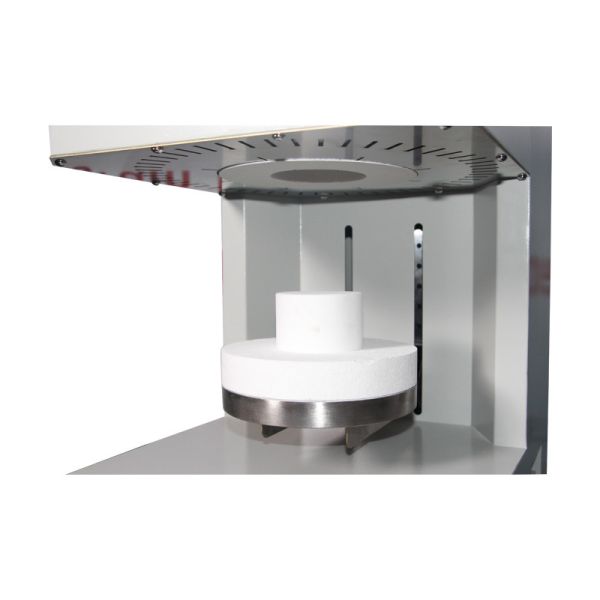

1200°C Small Table-top Lifting Muffle Furnace,Lifting system

• Stainless steel round chassis, double-layer aluminum tray, total length 100mm, good thermal insulation effect.
• Ball screw with double-line slider module, electric lifting.
• Built-in limit switch, lifting speed 0-2m/min adjustable, tight coupling when the furnace door is closed.

Heating Programs for 1200°C Elevator Furnace

• Yudian PID temperature controller,programmable 50 segments, phase-shift trigger, thyristor control, heating rate 1-20C/min freely adjusted
• Good thermal insualtion, natural cooling, cooling down gently
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
• Please do not inject flammable, explosive or highly corrosive gases.
• For safety, please place the furnace in a ventilated place.
• The sample should be placed in a crucible, not directly in the chamber.

Size Comparison
