Elevator Hearth Furnace For Ceramic Sintering 1750°C with dual steel housing, electrically driven bottom loading system
Elevator Hearth Furnace For Ceramic Sintering 1750°C with dual steel housing, electrically driven bottom loading system
Specifications
Brand Name :
Programtherm
Model Number :
PE L64/17
Certification :
CE
Payment Terms :
T/T, L/C
Delivery Time :
30 working days
Usage :
calcination, sintering and other processes on new materials, ceramics in labs and industrial.
Tmax temperature :
1700 degree C
Working temperature :
1600 degree C
Chamber size :
400x400x400mm (16x16x16″) Capacity: 64 Liters
Chamber material :
Mitsubishi Raw Material high alumina 1850# fiber board
Heating elements :
MoSi2 (U shape, 12pcs)
Temp Controller :
Digital auto-tune PID 30 segments
Thermocouple :
B type
Warranty :
18 months limited warranty with lifetime technical support
After-sales service :
free spareparts including air freight
Description

Elevator Hearth Furnace for Ceramic Sintering 1750°C (16x16x16″ 64L)

Overview

PE L27/17 is a elevator hearth furnace, builds with dual steel housing, electrically driven bottom loading system, easy for sample loading and unloading. 7″ temperature control panel, Powerful MoSi2 heating rods heat from four sides ensure an outstanding temperature uniformity. Tmax 1700°C. Bottom loading furnace is suitable for multiple heat treatments such as calcination, sintering and other processes on new materials, ceramics in labs and industrial.Programtherm supplies a variety of elevator furnaces, and programtherm elevator furnace makes your heat treatment more successful.

Main Features

  • Tmax 1700 °C
  • Bottom loading, elevator hearth, top hat furnace
  • Steel structure with fan cooling for low surface temperature
  • Electric lifting bottom, available four sides loading
  • Bottom heating protected by a 3-step alumina tiles
  • Fiber-insulated chamber with MoSi2 rods heating from four sides, which ensures maximum temperature stability and uniformity
  • 7″ touchscreen controller with USB adaptor
  • Long life type B thermocouple
  • CE certified, standard


Safety Measures

  • Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
  • Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

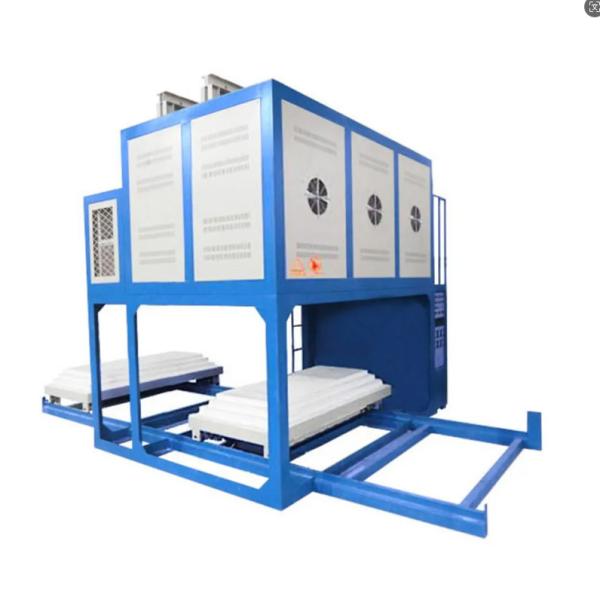

Elevator Hearth Furnace For Ceramic Sintering 1750°C with dual steel housing, electrically driven bottom loading system

Overview for Elevator Hearth Furnace for Ceramic Sintering 1750°C


Technical Specifications

Model No. PE L64/17
Chamber size (DxWxH) 400x400x400mm (16x16x16″)
Capacity: 64 Liters
Power supply 21KW
AC380-415V, 50/60Hz, three phases
Working temperature

Tmax 1750°C (3182°F)
Continuously 1700°C (3092°F)
Temperature uniformity +/- 5C
Temperature controller

Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°C
Heating rate ≤10°C /min
Thermocouple B type
Chamber lining Mitsubishi Raw Material high alumina 1850# fiber board
Electronic components Siemens maker air switch, AC contactor, SSR Relay etc
Heating element MoSi2 (U shape, 12pcs)
Shipping info Weight: 670 KGS
W1710xL1830xH1850mm
Compliance CE, ISO
Warranty 18 months limited warranty with lifetime technical support

Application Notes

  • However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison

Item name PE L45/17 PE L96/17 PE L150/17
Inner size (DxWxH) 500x300x300mm 600x400x400mm 60x500x500mm
Capacity 45 L 96 L 150 L
Power 18 KW 25 KW 30 KW
Weight 565 KGS 775 KGS 1200 KGS
