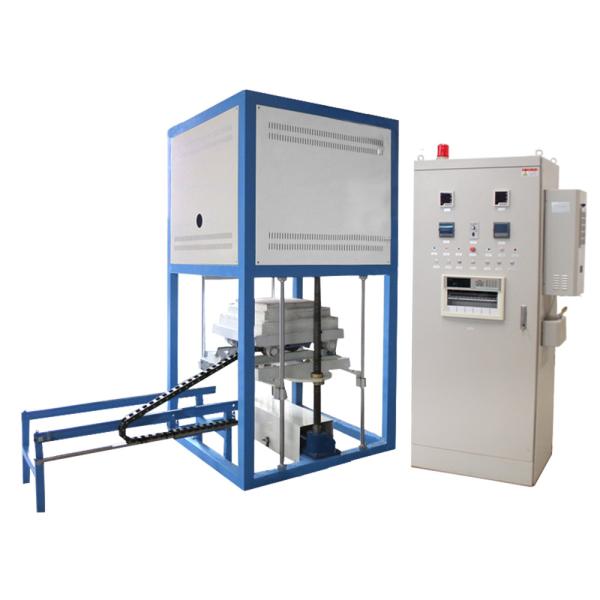

Bottom Loading Furnace 1700°C in Laboratory (12x12x12″ 27L) with electrically driven bottom loading system
Bottom Loading Furnace 1700°C in Laboratory (12x12x12″ 27L) with electrically driven bottom loading system
Specifications
Brand Name :
Programtherm
Model Number :
PE D300/17
Certification :
CE
Payment Terms :
T/T, L/C
Delivery Time :
30 working days
Usage :
calcination, sintering，processes on new materials, ceramics in labs and industrial.
Tmax temperature :
1700 degree C
Working temperature :
1600 degree C
Chamber size :
300x300x300mm (12x12x12″) Capacity: 27 Liters
Chamber material :
Mitsubishi Raw Material high alumina 1800# fiber board
Heating elements :
MoSi2 (U shape, 12pcs)
Temp Controller :
Digital auto-tune PID 30 segments
Thermocouple :
B type
Warranty :
18 months limited warranty with lifetime technical support
After-sales service :
free spareparts including air freight
Description

Bottom Loading Furnace 1700°C in Laboratory (12x12x12″ 27L) with electrically driven bottom loading system

Overview

PE D300/17 is a bottom loading furnace, builds with dual steel housing, electrically driven bottom loading system, easy for sample loading and unloading. 7″ temperature control panel, Powerful MoSi2 heating rods heats from four sides ensure an outstanding temperature uniformity. Tmax 1700°C. Bottom loading furnace is suitable for multiple heat treatments such as calcination, sintering and other processes on new materials, ceramics in labs and industrial.Programtherm supplies a variety of bottom loading furnaces, and programtherm bottom loading furnace makes your heat treatment more successful.

Main Features

  • Tmax 1750 °C
  • Bottom loading, elevator hearth, top hat furnace
  • Electric lifting bottom, available for all sides loading
  • Dual steel housing with fan cooling for low surface temperature
  • Bottom heating protected by a 3-step alumina tiles
  • Fiber-insulated chamber with MoSi2 rods heating from all sides, which ensures maximum temperature stability and uniformity
  • 7″ touchscreen controller with USB adaptor
  • Long life type B thermocouple
  • CE certified, standard


Safety Measures

  • Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
  • Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

Bottom Loading Furnace 1700°C in Laboratory (12x12x12″ 27L) with electrically driven bottom loading system

Overview for Elevator Hearth Furnace for Ceramic Sintering 17000°C


Technical Specifications

Model No. PE D300/17
Chamber size (DxWxH) 300x300x300mm (12x12x12″)
Capacity: 27 Liters
Power supply 8KW
AC380-415V, 50/60Hz, three phases
Working temperature

Tmax 1700°C (3092°F)
Continuously 1600°C (2912°F)
Temperature uniformity +/- 5C
Temperature controller

Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°C
Heating rate ≤10°C /min
Thermocouple B type
Chamber lining Mitsubishi Raw Material high alumina 1800# fiber board
Electronic components Siemens maker air switch, AC contactor, SSR Relay etc
Heating element MoSi2 (U shape, 12pcs)
Shipping info Weight: 310 kgs
W710xL830xH1100mm
Compliance CE, ISO
Warranty 18 months limited warranty with lifetime technical support

Application Notes

  • However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison

Item name PE D100/17 PE D150/17 PE D200/17
Inner size (DxWxH) 100x100x100mm 150x150x150mm 200x200x200mm
Capacity 1 L 3 L 8 L
Power 3 KW 4 KW 5 KW
Furnace dimensions (LxWxH) 720x670x1100mm 800x750x1250mm 975x1050x1350mm
Weight 565 KGS 175 KGS 260 KGS
