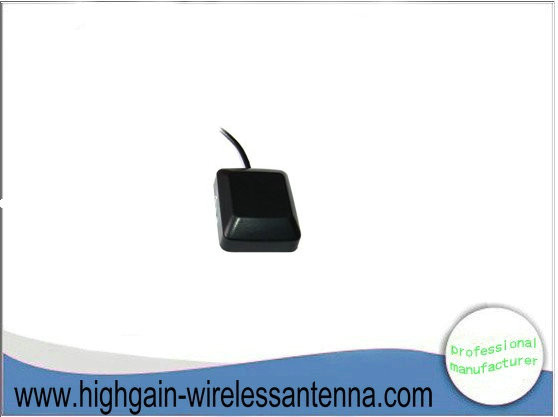

Dielectric Car GPS Antenna
Dielectric Car GPS Antenna
Specifications
Product name :
Car GPS Antenna
Frequency(MHz) :
1575/1602
Center Frequency(MHz) :
1590
VSWR :
1.5:1
Bandwidth(MHz) :
±5
Impedance(Ω) :
50
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Dielectric Magnetic base Glonass Car GPS Antenna strong signal 1602 MHz

( I ) Product Overview

  1. Dielectric Antenna
  2. Frequency(MHz):1575/1602
  3. Center Frequency(MHz):1590
  4. VSWR:1.5:1
  5. Bandwidth(MHz):±5
  6. Impedance(Ω):50
  7. Peak Gain ＞3dBi Based on 7cm×7cm ground plane
  8. Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
  9. Polarization:RHCP

(ii)LNA/Filter

  1. LNA Gain (Without cable) (dBi):28 Typical
  2. Noise Figure(dB):1.5
  3. Filter Out Band Attenuation (f0=1575.42 MHz)
  4. 7dB Min f0+/-20MHz ;
  5. 20dB Min f0+/-50MHz;
  6. 30dB Min f0+/-100MHz
  7. VSWR ＜2.0
  8. DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
  9. DC Current(mA):11Max

(iii)Mechanical

  1. Weight(gram)＜110
  2. Size(mm):44.0×35.5 ×14.0
  3. Cable Length(m):2,3 etc.
  4. Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
  5. Mounting:Magnetic base
  6. Housing :Black

(iv)Environmental

  1. Working Temp:-40℃~+85℃
  2. Storage Temp:-45℃~+100℃
  3. Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
  4. Humidity:Humidity95%~100%RH
  5. Weatherproof:100%Waterproof

Antenna details:
