Dielectric Magnetic base Car GPS Antenna Glonass strong signal 1602 MHz
Dielectric Magnetic base Car GPS Antenna Glonass strong signal 1602 MHz
Dielectric Magnetic base Car GPS Antenna Glonass strong signal 1602 MHz
Dielectric Magnetic base Car GPS Antenna Glonass strong signal 1602 MHz
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
Car GPS Antenna
Frequency(MHz) :
1575/1602
Center Frequency(MHz) :
1590
VSWR :
1.5:1
Bandwidth(MHz) :
±5
Impedance(Ω) :
50
Description

Dielectric Magnetic base Car GPS Antenna Glonass strong signal 1602 MHz

( I ) Product Overview

  1. Dielectric Antenna
  2. Frequency(MHz):1575/1602
  3. Center Frequency(MHz):1590
  4. VSWR:1.5:1
  5. Bandwidth(MHz):±5
  6. Impedance(Ω):50
  7. Peak Gain ＞3dBi Based on 7cm×7cm ground plane
  8. Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
  9. Polarization:RHCP

(ii)LNA/Filter

  1. LNA Gain (Without cable) (dBi):28 Typical
  2. Noise Figure(dB):1.5
  3. Filter Out Band Attenuation (f0=1575.42 MHz)
  4. 7dB Min f0+/-20MHz ;
  5. 20dB Min f0+/-50MHz;
  6. 30dB Min f0+/-100MHz
  7. VSWR ＜2.0
  8. DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
  9. DC Current(mA):11Max

(iii)Mechanical

  1. Weight(gram)＜110
  2. Size(mm):44.0×35.5 ×14.0
  3. Cable Length(m):2,3 etc.
  4. Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
  5. Mounting:Magnetic base
  6. Housing :Black

(iv)Environmental

  1. Working Temp:-40℃~+85℃
  2. Storage Temp:-45℃~+100℃
  3. Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
  4. Humidity:Humidity95%~100%RH
  5. Weatherproof:100%Waterproof

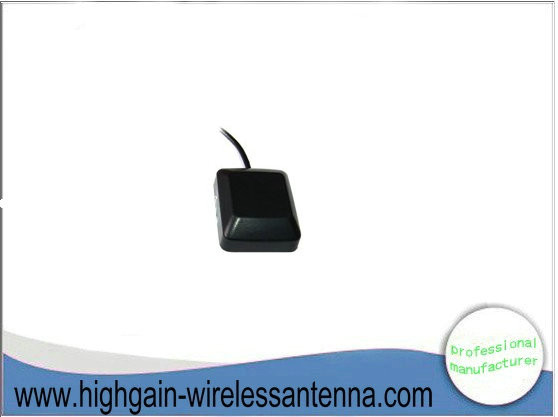

Antenna details:

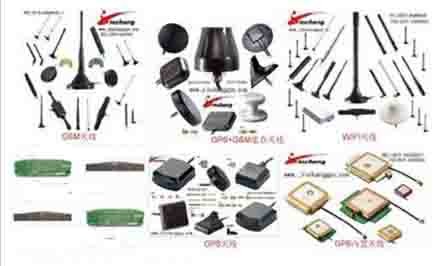

Views abou us :
