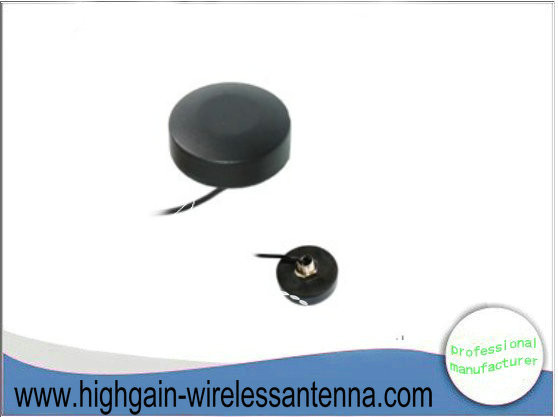

High Gain Active Car GPS Antenna
High Gain Active Car GPS Antenna
Specifications
Product name :
Car GPS Antenna
Bandwidth(MHz) :
±5
Polarization :
RHCP
Noise Figure(dB) :
1.5
feature :
100% Waterproof
Size :
46 mm(D)×15mm(H)
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSGPS-28
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Low VSWR Black High Gain 3dBi Active Car GPS Antenna SMA / SMB / SMC Connector

Product Overview

(i)Dielectric Antenna

  1. Center Frequency(MHz):1575.42±3
  2. VSWR:1.5:1
  3. Bandwidth(MHz):±5
  4. Impedance(Ω):50
  5. Peak Gain ＞3dBi Based on 7cm×7cm ground plane
  6. Gain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)
  7. Polarization:RHCP

(ii)LNA/Filter

  1. LNA Gain (Without cable) :28 dBi Typical
  2. Noise Figure(dB):1.5
  3. Filter Out Band Attenuation (f0=1575.42 MHz)
  4. 7dB Min f0+/-20MHz;
  5. 20dB Min f0+/-50MHz;
  6. 30dB Min f0+/-100MHz
  7. VSWR ＜2.0
  8. DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
  9. DC Current (mA):11 Max

(iii)Mechanical

  1. Weight(gram)＜110
  2. Size(mm):Φ46 ×14.5
  3. Cable Length(m):2,3 etc.
  4. Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
  5. Mounting:Screw mount
  6. Housing:Black

(iv)Environmental

  1. Working Temp:-40℃~+85℃
  2. Storage Temp:-45℃~+100℃
  3. Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
  4. Humidity:Humidity95%~100%RH
  5. Weatherproof:100%Waterproof

( II ) Mechanical

  1. Weight ＜110gram
  2. Size 46 mm(D)×15mm(H)
  3. Cable RG174 3meters or other
  4. Connector SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other
  5. Mounting Screw mount
  6. Housing Black

Antenna details:
