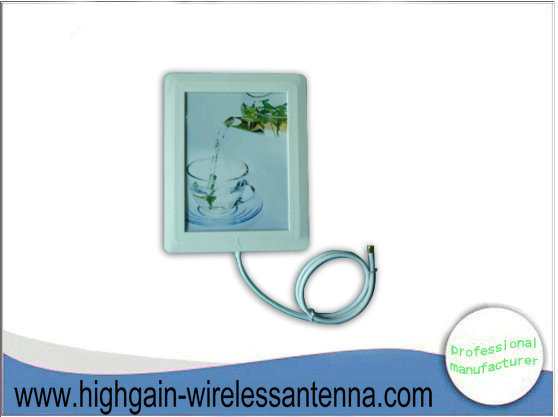

Wireless 2.4 GHZ WIFI Antenna panel
Wireless 2.4 GHZ WIFI Antenna panel
Specifications
Product name :
2.4 GHZ WIFI Antenna
Application :
WIFI Telecommunication /Wireless AP , wireless adapter
Feature :
Optimized dimension,High Gain
Frequency rang-MHz :
2400-2483
Gain -dBi :
14
Polarization :
Vertical
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSW-2400-14F
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

network Wireless 2.4 GHZ WIFI Antenna panel


Application:

● WIFI Telecommunication system
● Wireless AP , wireless adapter
● 2.4GHZ WLAN System
● 2.4GHZ ISM application

Feature:


● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Specification

Model NO

RSW-2400-14F

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

14

beam width -°

H:65 V:30

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA male or others

Mechanical Specification

Antenna Size -mm

218*173*23

Photo Size-mm

180*130

Antenna weight-kg

0.62

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

mount on the wall

View of us ;
