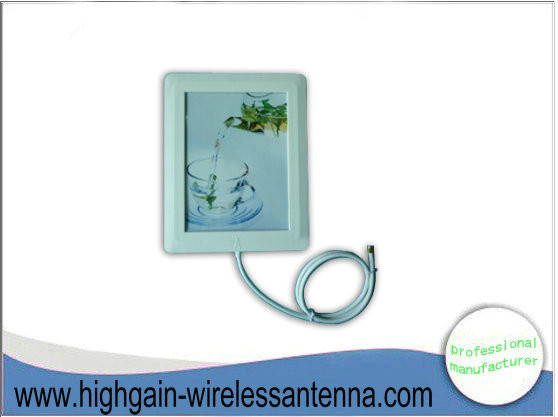

network Wireless AP DC Ground 2.4 GHZ WIFI Antenna Panel Wall Mount 14dBi
network Wireless AP DC Ground 2.4 GHZ WIFI Antenna Panel Wall Mount 14dBi
network Wireless AP DC Ground 2.4 GHZ WIFI Antenna Panel Wall Mount 14dBi
network Wireless AP DC Ground 2.4 GHZ WIFI Antenna Panel Wall Mount 14dBi
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSW-2400-14F
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
2.4 GHZ WIFI Antenna
Application :
WIFI Telecommunication /Wireless AP , wireless adapter
Feature :
Optimized dimension,High Gain
Frequency rang-MHz :
2400-2483
Gain -dBi :
14
Polarization :
Vertical
Description

network Wireless AP DC Ground 2.4 GHZ WIFI Antenna Panel Wall Mount 14dBi


Application:

● WIFI Telecommunication system
● Wireless AP , wireless adapter
● 2.4GHZ WLAN System
● 2.4GHZ ISM application

Feature:


● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Specification

Model NO

RSW-2400-14F

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

14

beam width -°

H:65 V:30

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

SMA male or others

Mechanical Specification

Antenna Size -mm

218*173*23

Photo Size-mm

180*130

Antenna weight-kg

0.62

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

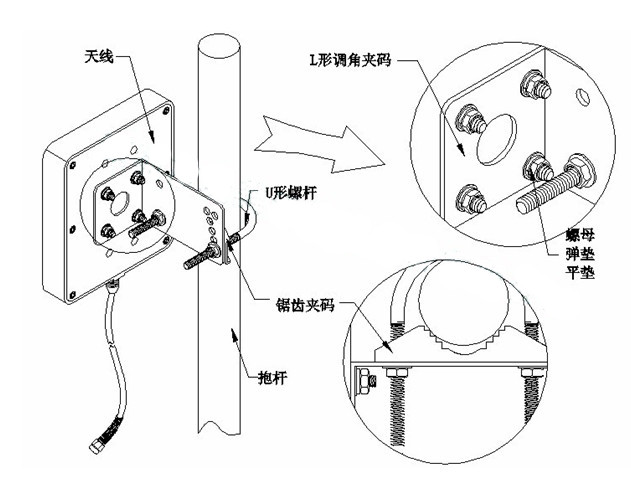

Mounting way

mount on the wall

View of us ;
