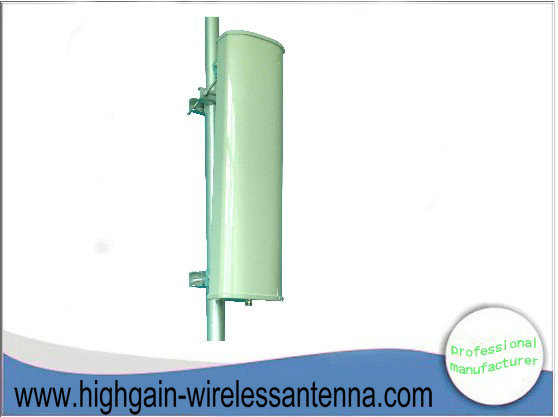

Panel Directional 18DBi outdoor 2.4 GHZ WIFI Antenna For Base Station N Female
Panel Directional 18DBi outdoor 2.4 GHZ WIFI Antenna For Base Station N Female
Specifications
Model Number :
RSP-2400-18
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
2.4 GHZ WIFI Antenna
Feature :
High Gain,Durable, corrosion resistance
Application :
2.4 GHz WIFI WLAN System/Base station &Repeater station system
Polarization :
Vertical
Beamwidth(0°) :
H:65 V:38
Input Impedance(Ω) :
50
Description


Panel Directional 18DBi outdoor 2.4 GHZ WIFI Antenna For Base Station N Female


Feature:
● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension


Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system

Specifications

Electric Specifications

Frequency rang

2400-2500

Polarization

Vertical

Gain(DBi)

18

Beamwidth(0°)

H:65 V:38

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

100

Mechanical Specifications

Connector model

N Female

antenna size (mm)

870*175*80

Packing size(mm)

900*200*150

Antenna weight (kg)

4.2

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Pole diameter(mm)

50～75


Antenna details :



















Application Example :




Install demonstration




View of us ;
