point to multipoint Yagi 2.4 GHZ WIFI Antenna / 18dBi Wireless bridge Antenna Hi Gain
point to multipoint Yagi 2.4 GHZ WIFI Antenna / 18dBi Wireless bridge Antenna Hi Gain
Specifications
Model Number :
RSY-2400-18
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
2.4 GHZ WIFI Antenna
Application :
2.4GHZ WLAN System,Wireless bridge ,Terminal antenna
Frequency rang-MHz :
2400-2483
Bandwidth -MHz :
83
beam width -° :
H:30 V:28
Polarization :
Horizontal or Vertical
Description


point to multipoint Yagi 2.4 GHZ WIFI Antenna / 18dBi Wireless bridge Antenna Hi Gain


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Application:
● 2.4GHZ WLAN System
● Point to point and point to point multipoint transmission system
● Wireless bridge ,Terminal antenna
● Wireless AP , wireless adapter


Specification

Model NO

RSY-2400-18

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

18

element

18

beam width -°

H:30 V:28

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

580*70*44

Cable length-m

1

Antenna weight-kg

0.35

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

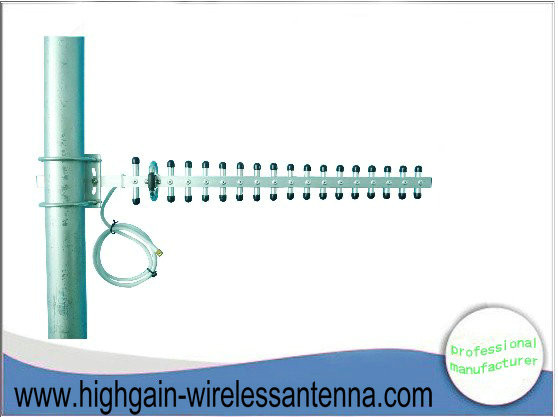

Antenna details :









Application Example :



Install demonstration




View of us ;
