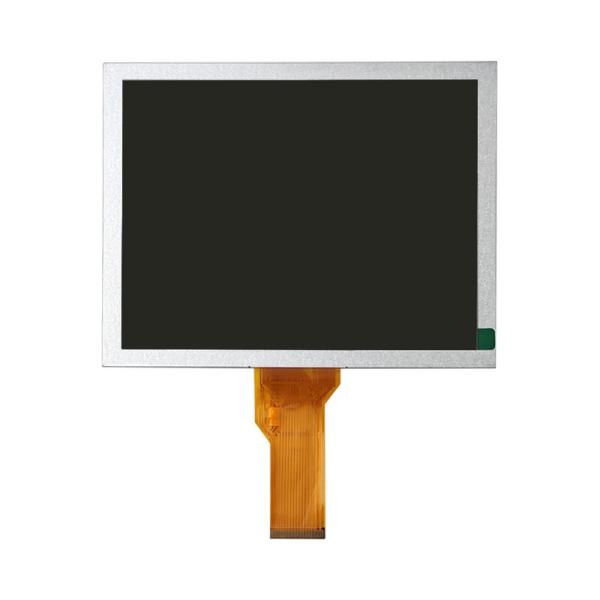

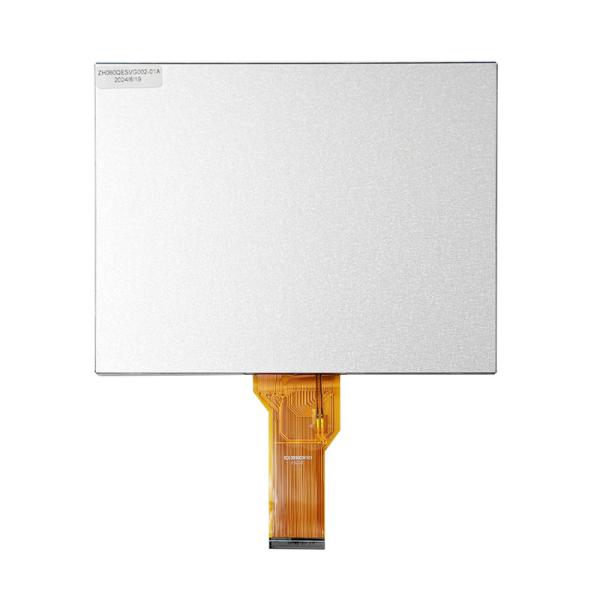

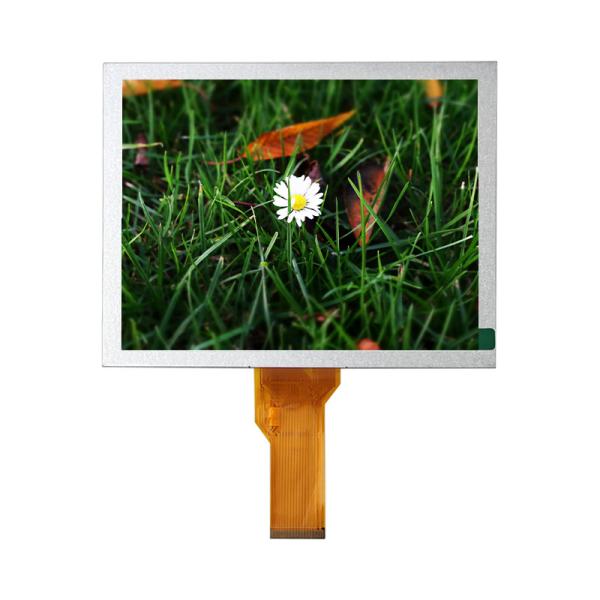

Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
Specifications
Brand Name :
OEM/Customzied
Model Number :
ZH080QESVG002-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
8.0 Inch
Resolution :
800x600
Brightness :
500 cd/m² （Typ.）
Display type :
TN, Normally White
Outline Dimensions :
183.0(W) x141.0(H) x 5.5(T) mm
Operating Temperature :
-20℃~+70℃
Description

Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits

The ZH080QESVG002-01A is an 8.0 Inch TFT LCD Screen suitable for outdoor harsh environments. Featuring an a-Si TFT active matrix, this transmissive display provides vivid visuals and stable performance, making it ideal for industrial, automotive, medical and automation systems.

This 8 Inch TFT LCD Screen is 800×RGB×600 (WVGA)​​ resolution delivers sharp, vibrant visuals for industrial, medical, and commercial displays.
​​16.7M colors​​ with ​​NTSC 50%​​ gamut ensures true-to-life color

​​The TFT LCD Screen 500 cd/m² brightness​​ (typ.) with ​​75% uniformity​​ for consistent visibility in high-ambient-light environments.
​​LED backlight​​ (9.3V typ., 180mA) offers ​​50,000+ hours Lifetime
​​6 o’clock viewing direction​​ and ​​wide viewing angles​​ (H: 70° typ., V: 50° typ.) for flexible installation.

​​The 8 inch TFT LCD Screen with 5.5mm ultra-thin profile​​ (183.0×141.0×5.5mm) saves space in compact devices.

​​24-bit RGB interface​​ with ​​DE/HSYNC mode select​​ (MODE pin).
​​Flexible scan direction control​​ (U/D, L/R pins) for versatile PCB layout.
​​Hirose FH12A-50S-0.5SH FPC connector​​ ensures secure signal transmission.
​​​​

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH080QESVG002-01A
Screen Size 8.0 Inch
Resolution 800x600
Brightness 500 cd/m²(Typ.)
Display Mode TN, Normally White
Driver IC EK79713B+EK73215B
Active Aera 154.21(W) x85.92(H) mm
Outline Dimension 183.0(W) x141.0(H) x 5.5(T) mm
Backlight 27-Chip white LED,180mA 9.3V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel

Product Drawing

Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits

Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Screen!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
