1024x600 Resolution 7 Inch TFT LCD Screen Normally Black Panel 350nits Brightness

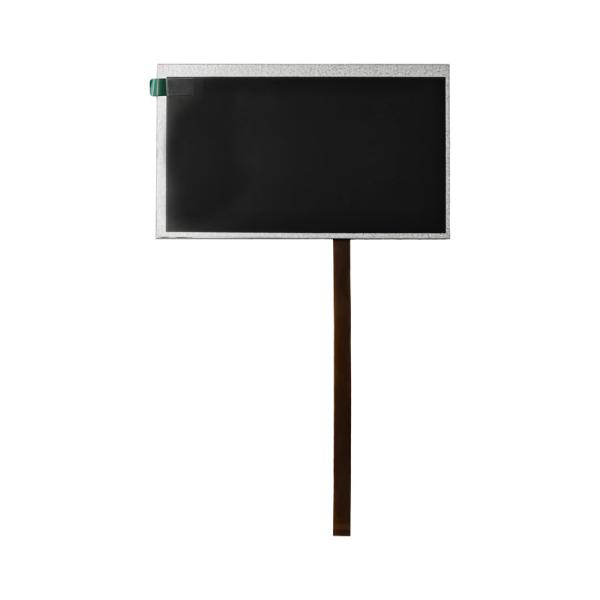

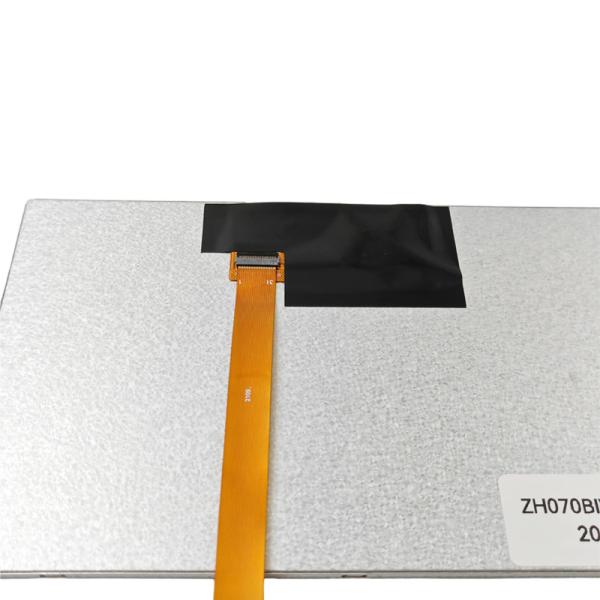

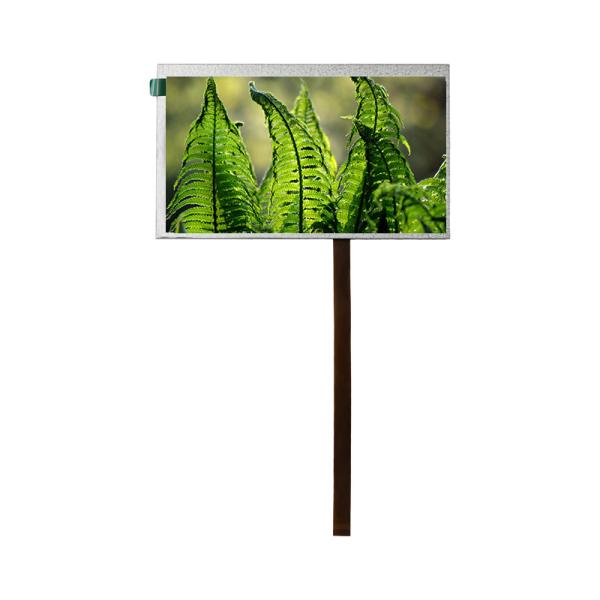

ZH070BIWSV001-02A is 7.0-inch TFT LCD Screen module with 1024×RGB×600 high resolution and supports 16.7M full-color display. The module integrates MIPI interface and is suitable for industrial control, medical equipment, vehicle display, smart home and other application scenarios.

7 Inch TFT LCD Screen resolution: 1024×600, pixel pitch 0.1506(H)×0.1432(V)mm, clear and delicate.

​​High contrast 800​​ and ​​NTSC 50%​​, vivid and lifelike colors.

​​MIPI-interface, supports high-speed data transmission, compatible with mainstream main control chips.

​​Wide voltage input (VDD3V3: 3.1~3.5V, VDD1V8: 1.71~1.89V), adaptable to different power supply environments.

​​WLED backlight, typical brightness 350cd/m², uniformity ≥75%, long life and energy saving.

​​Ultra-thin design (3.45mm thickness), compact size (164.9×100.0mm), easy to integrate.

​​Wide operating temperature range (-20℃~60℃), passed rigorous tests such as high and low temperature, humidity, and vibration.

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

Product Drawing

Why Choose ZhanHui TFT LCD Screen?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
