Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101BH015-05
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1024x600
Brightness :
250 cd/m² （Typ.）
Display type :
TN, Normally White
Outline Dimensions :
235.0(W) x143.0(H) x2.8(T) mm
Operating Temperature :
-20℃~+60℃
Description

LVDS interface 1024x600 Resolution 10.1 Inch LCD Display Panel Optional Touch Panel

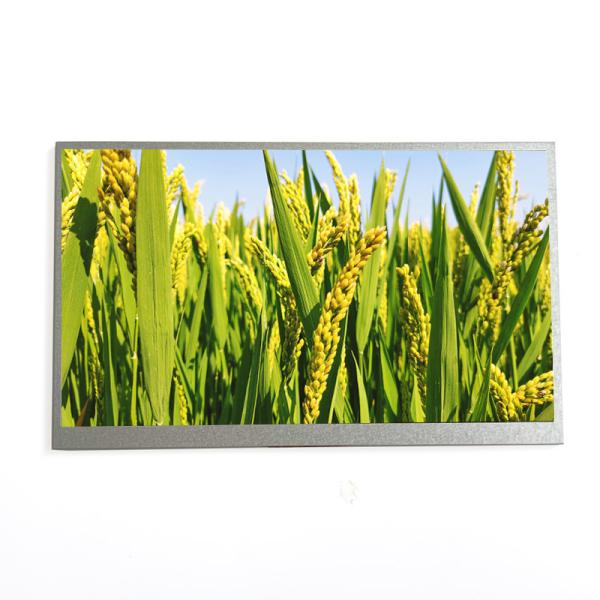

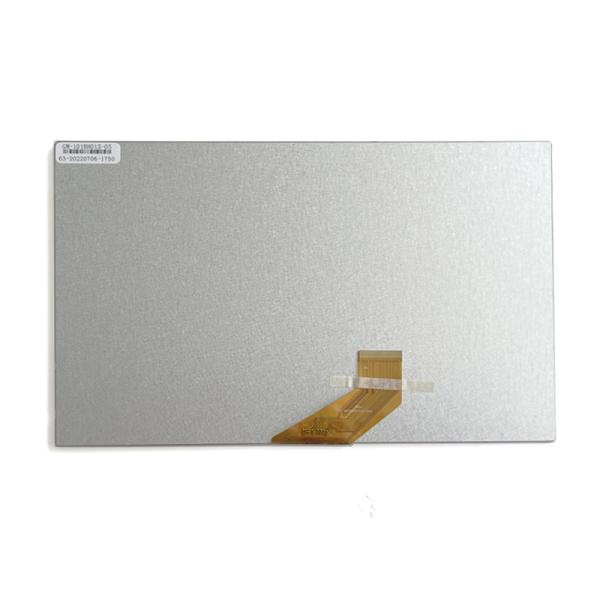

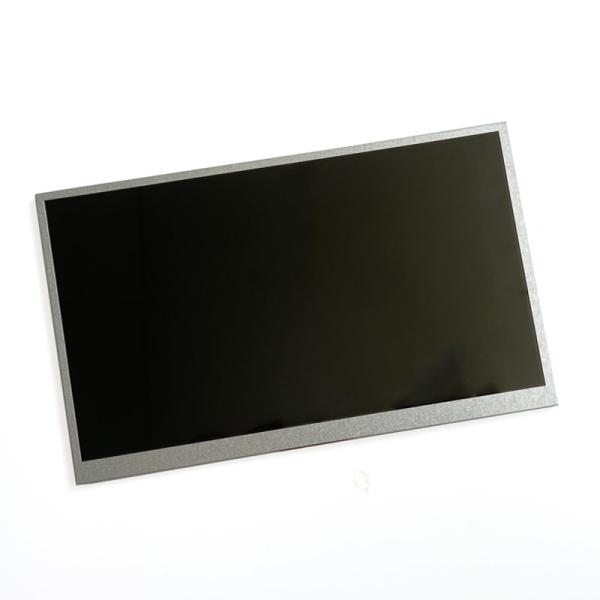

ZH101BH015-05 is a 10.1-inch TFT LCD Screen with 1024×600 resolution. It uses a TFT panel and integrated WLED backlight, making it ideal for high-reliability environments such as industrial control, medical equipment, vehicle-mounted displays, smart terminals, and outdoor self-service terminals.

Designed by Shenzhen Zhanhui Optoelectronics Technology, this display features an LVDS interface and anti-glare surface treatment, combining durability, clarity, and flexible integration.


The TFT LCD Screen with brightness​​ 250 cd/m² (typ.) and ​​80% uniformity​​, ensuring consistent visibility even under bright lighting.
and 50% NTSC coverage (CIE1931), delivering vibrant and accurate colors.


​​Temperature Range​​: Operates flawlessly from ​​-20°C to 60°C​​ (storage: -30°C to 70°C).


​​Surface Hardness​​: 3H anti-glare coating resists scratches and reduces reflections.


The 10.1 TFT LCD Screen with ​​27-chip WLED array​​ with ​​180mA drive current​​, offering long lifetime(>50,000 hours).

Optional Touch Panel: We can support customzied according to your requirement


​​

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems


Product Specification


Item Number ZH101BH015-05
Screen Size 10.1 Inch
Resolution 1024x600
Brightness 250 cd/m²(Typ.)
Display Mode TN, Normally White
Interface LVDS, 40pins Connector
Active Aera 222.72(W) x125.28(H) mm
Outline Dimension 235.0(W) x143.0(H) x2.8(T) mm
Backlight 27-Chip white LED,180mA 10.5V
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
Touch Panel Optional Touch Panel


Product Drawing


LVDS interface 1024x600 Resolution 10.1 Inch LCD Display Panel Optional Touch Panel

LVDS interface 1024x600 Resolution 10.1 Inch LCD Display Panel Optional Touch Panel








Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness


FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!


Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Screen!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
