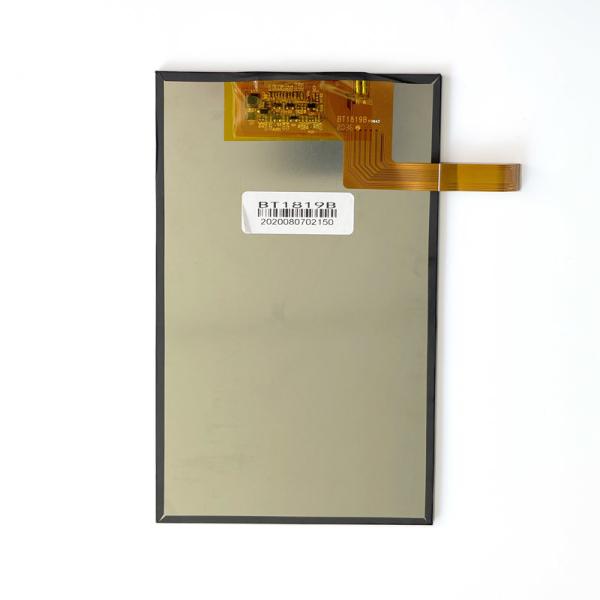

MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070HH106-01
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
800x1280
Brightness :
300 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
99.85(W) x161.7(H) x 2.6 (T) mm
Operating Temperature :
-20℃~+60℃
Description

MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800X1280


7.0-inch TFT LCD Screen (ZH070HH106-01)
High-performance color display for demanding applications

The ZH070HH106-01 TFT LCD Screen is a 7.0-inch color active matrix display designed for superior visual performance and reliability, giving you excellent picture quality and durability. With a native resolution of 800 (RGB) × 1280 pixels, the module is suit for handheld devices, industrial equipment, and automotive displays.


This 7 inch TFT LCD Display Modules Key Features & Specifications​​


​​1. High-Performance Display​​
​​Screen Size​​: 7.0-inch diagonal with ​​800(RGB)×1280 resolution​​ (WXGA), delivering crisp and vibrant visuals.
​​Active Area​​: 94.20mm (H) × 150.72mm (V), optimized for immersive viewing.
​​Color Depth​​: ​​16.7 million colors​​ (RGB-stripe arrangement) with ​​55–60% NTSC color gamut​​ for true-to-life imagery.


​​2. Advanced Technology​​
​​LCD Mode​​: Transmissive ​​a-Si TFT​​ with ​​Normally Black​​ display mode for high contrast (600:1 typ).
​​Viewing Angle​​: ​​Free-direction​​ viewing (80°+ CR>10) for flexible installation.
​​Surface Treatment​​: ​​Anti-glare​​ coating with ​​3H hardness​​ to resist scratches.


​​3. Robust Design​​
​​Dimensions​​: 99.85mm (H) × 161.7mm (V) × 2.6mm (T), ultra-slim profile for space-saving integration.
​​Interface​​: ​​MIPI-DSI​​ 4-lane interface for high-speed data transmission.
​​Backlight​​: ​​20-chip WLED​​ with ​​300 cd/m²​​ brightness (min), ​​80mA drive current​​, and ​​20,000-hour lifespan​​.


Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems


Product Specification


item ZH070HH106-01
Screen Size 7.0 Inch
Resolution 800x1280
Brightness 300 cd/m²(Typ.)
Interface MIPI, 31pins Connector
Display Mode
IPS,Normally Black
Driver IC ILI988IC
Viewing Angle 89/89/89/89 (Typ.)
Life time 20,000 Hrs (Min.)
Active Aera 94.20(W) x 150.72(H) mm
Outline Dimension 99.85(W) x161.7(H) x 2.6 (T) mm
Backlight 20-Chip white LED, 80mA, 17.5V
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
Touch Panel Optional Touch Panel


Product Drawing

MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280

MIPI interface 7 Inch LCD TFT Display Screen with IC ILI988IC 800x1280





Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness


FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!


Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Screen!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
