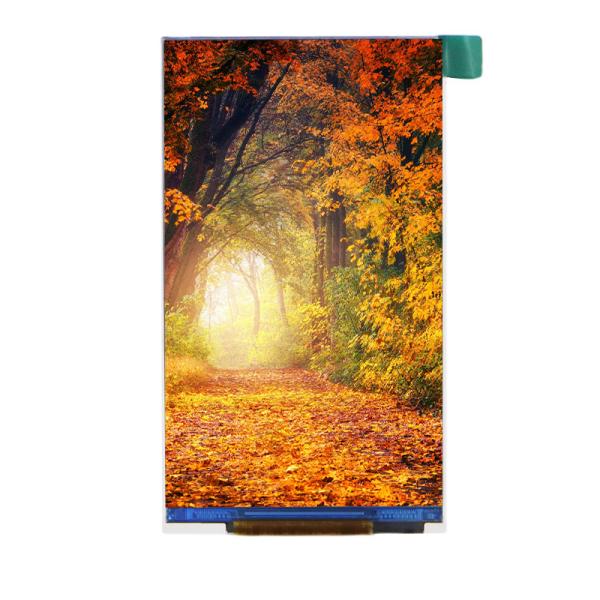

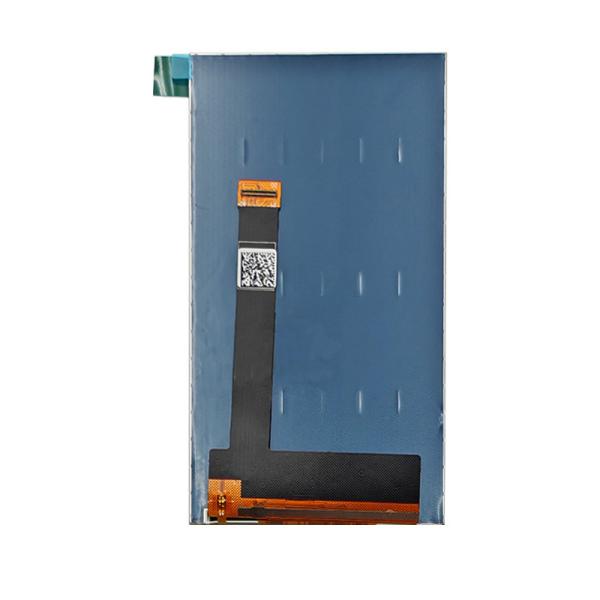

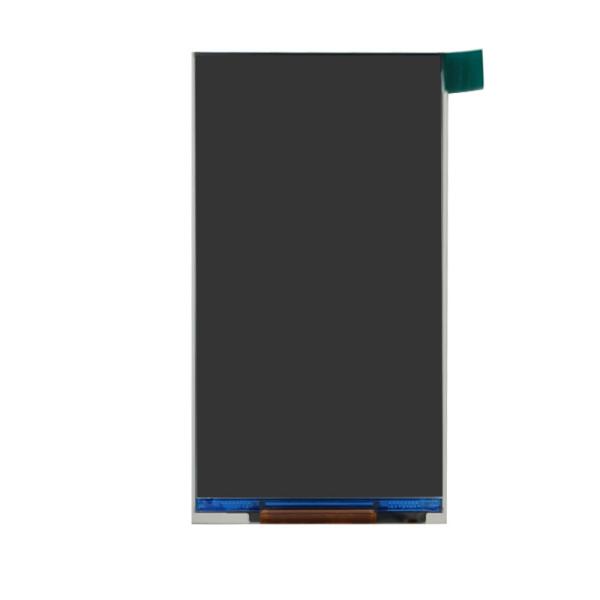

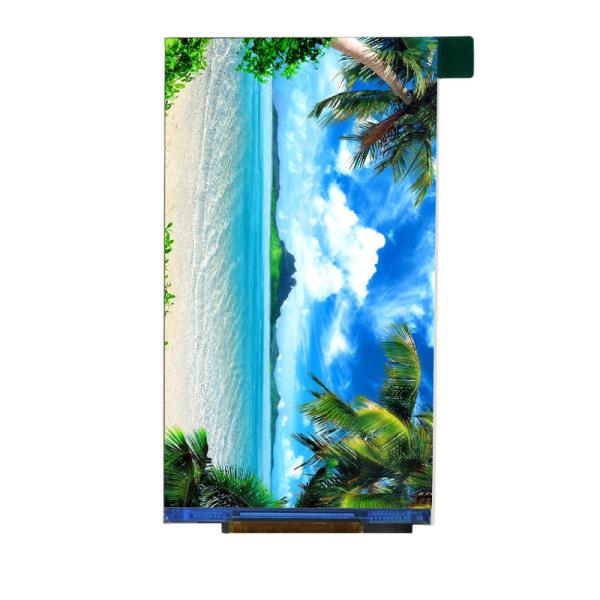

5.0 Inch 1000nits IPS ILI9881C IC TFT LCD Display Optional Capacitive Touch Screen 720x1280

The ZH050QHD001-01 is a high-performance TFT LCD screen engineered for industrial and commercial integration. With a 5.0-inch IPS panel and a high-definition resolution of 720x1280, it delivers sharp, clear visuals with wide viewing angles and strong color consistency. Its 1000 cd/m² brightness ensures excellent readability in both indoor and outdoor environments.

This TFT LCD screen with ILI9881C-05 driver IC and a 40-pin RGB interface, making it ideal for embedded systems, handheld devices, and industrial control panels. The IPS, Normally Black display mode enhances contrast and performance under various lighting conditions.

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

This TFT LCD screen offers a robust and scalable solution for manufacturers, OEMs, and system integrators looking for reliable, high-brightness display modules.

Product Drawing

FAQ – TFT LCD Screen ZH050QHD001-01
Q1: What type of display is this?
A: It is a 5.0-inch TFT LCD screen using IPS (In-Plane Switching) technology with a Normally Black mode for better contrast and viewing angles.

Q2: Can this TFT LCD screen be used in outdoor environments?
A: Yes. With 1000 cd/m² brightness, it performs well in high ambient light and is suitable for outdoor or semi-outdoor applications.

Q3: What industries use this screen?
A: It’s widely used in industrial automation, handheld terminals, medical equipment, smart control panels, and other B2B embedded solutions.

Q4: Is the interface compatible with standard controllers?
A: Yes. It uses a standard 40-pin RGB interface, compatible with a variety of embedded platforms and development boards.

Q5: What kind of backlight does it use?
A: A 12-chip white LED backlight with 60mA @ 24V, delivering high brightness with efficient power usage.

Q6: Is touch functionality available?
A: This model supports optional touch integration upon request, depending on your project requirements.

Why Choose ZhanHui TFT LCD Screen?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness
