TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board
Specifications
Brand Name :
OEM/Customized
Model Number :
DV150X0M-N10
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
15 Inch
Resolution :
1024x768
Brightness :
350 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
326.5(W) x253.5(H) x9.7(T) mm
Operating Temperature :
-20℃~+70℃
Description

15 Inch IPS Panel 1024x768 TFT LCD Display Optional with HDMI Board

The DV150X0M-N10 is 15-inch HDMI LCD display . Offering a native resolution of 1024x768 (XGA), a brightness of 350 cd/m², and IPS technology, this panel ensures clear, wide-angle visibility across a variety of professional environments.

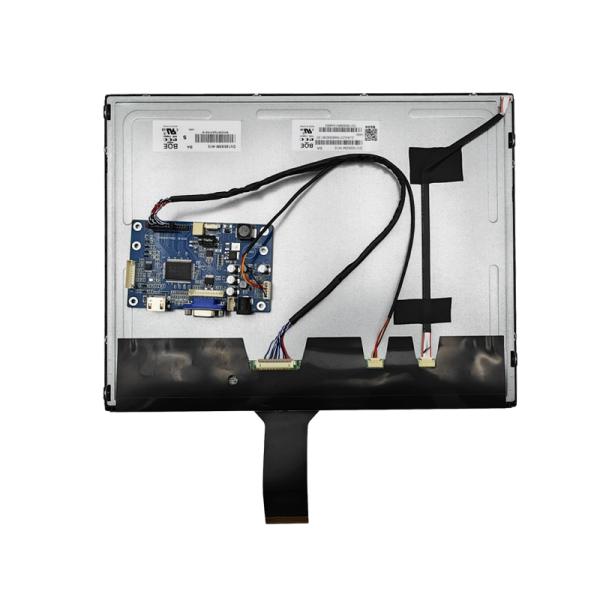

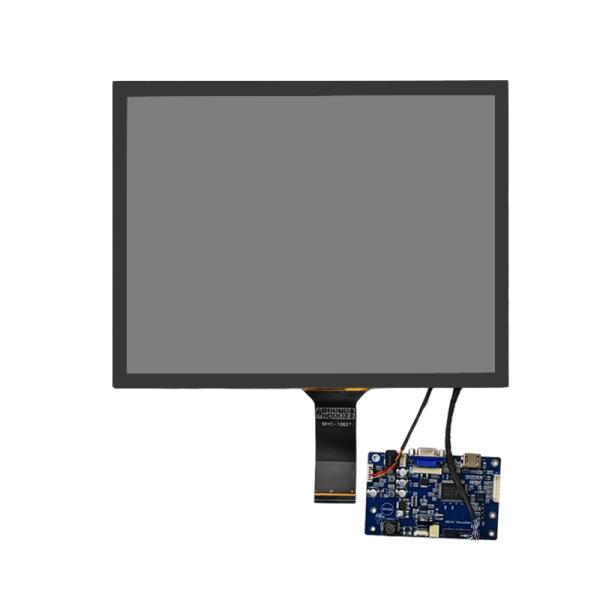

Equipped with an LVDS 20-pin connector and optional HDMI board, this HDMI LCD display supports flexible system integration with embedded platforms, industrial PCs, and controller boards. With an optional touch panel, it can also support user interaction for control systems, terminals, and kiosks.

Applications:
Industrial Equipment Displays

Factory Automation Interfaces (HMI)

Medical Diagnostic Systems

Self-Service Terminals & Kiosks

Control Panels and Embedded Systems

Benefits of DV150X0M-N10 TFT LCD Screen:
Industrial Durability – Wide temperature tolerance (-20℃ to +70℃) ensures reliable operation in harsh environments.
Extended Backlight Life – E-LED backlight offers up to 50,000 hours, reducing maintenance costs.
Sharp XGA Resolution – The 1024x768 resolution is optimal for detailed graphics and control interfaces.
Wide Viewing Angles – IPS technology delivers consistent image clarity from all directions.
Interactive Flexibility – Available with an optional touch panel for versatile B2B integration.
Compact Form Factor – Fits easily into industrial and embedded display systems.

Product Specification

Item Number DV150X0M-N10
Screen Size 15 Inch
Resolution 1024x768
Brightness 350 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 20pins Connector
Active Aera 304.128 (W) x 228.096 (H) mm
Outline Dimension 326.5(W) x253.5(H) x9.7(T) mm
Backlight E-LED Light Bar Type
Lifetime 50,000 Hrs
Surface hardness 3H
Operating Temperature -20℃~+70℃
Storage Temperature -20℃~+70℃
Touch Panel Optional Touch Panel
HDMI Board Optional HDMI Board

Product Drawing

TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board

TFT LCD Display 15 Inch IPS Panel 1024x768 Optional With HDMI Board

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
