7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070BH053-08
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
1024x600
Brightness :
1000 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
164.9(W) x100(H) x3.5(T) mm
Operating Temperature :
-20℃~+60℃
Description

7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module

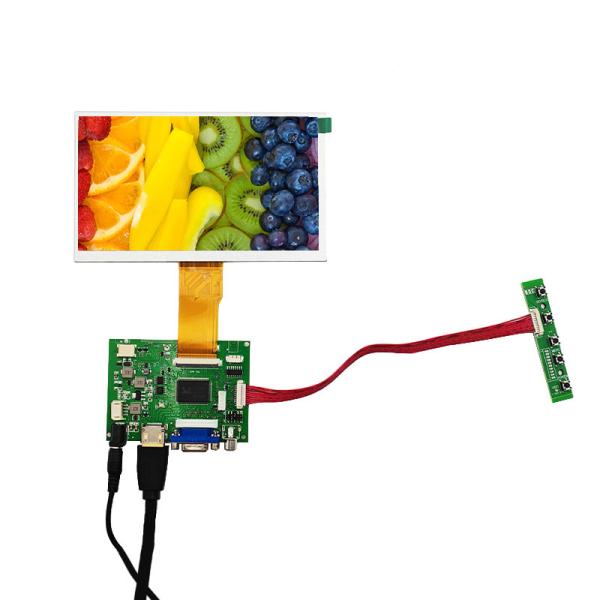

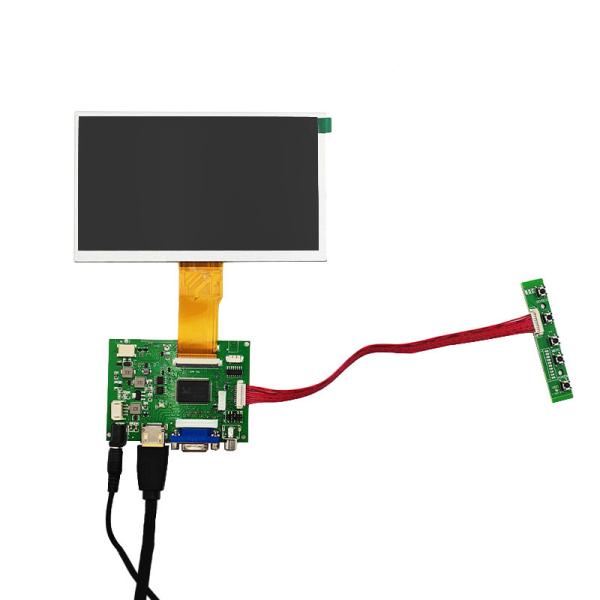

The ZH070BH053-08 is a 7.0 inch HDMI LCD Display. It features a 1024×600 resolution, delivering clear and delicate visuals, while the included driver board and HDMI interface ensure convenient connection and stable performance.


Designed with practicality in mind, this LCD module supports quick and easy integration. It is suitable for applications including embedded systems, portable terminals, small-scale monitoring, and industrial control. Its reliable performance and compact design make it an ideal choice for your needs.


Key Features

  • 1000nits High Brightness
Boasts excellent anti-glare performance, ensuring clear and vivid visibility even in strong ambient light such as outdoor sunlight or industrial workshop lighting, effectively avoiding display dimming, blurring, and information unreadability.
  • 7 Inch 1024x600 Resolution
With optimized pixel arrangement, it offers sharp, detailed visuals and balanced color reproduction, perfectly meeting the display clarity requirements of small-sized application scenarios like handheld devices and compact control panels.
  • With Driver Board & HDMI Interface
The pre-integrated driver board eliminates the need for additional circuit development, while the universal HDMI interface simplifies connection with computers, controllers, and other devices, enabling stable and efficient operation in various working environments.


Applications of 7 Inch LCD Display


  • Embedded control systems
  • Portable test instruments
  • Small-scale security monitoring
  • Industrial HMI terminals
  • Handheld electronic devices

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification


item ZH070BH053-08
Screen Size 7.0 Inch
Resolution 1024x600
Brightness 1000 cd/m²(Typ.)
Interface FPC, 50pins Connector
Display Mode
IPS,Normally Black
Viewing Angle 85/85/85/85
Lifetime 20,000Hrs (Min.)
Active Aera 154.2144(W)x85.92(H) mm
Outline Dimension 164.9(W) x100(H) x3.5(T) mm
Backlight 27-Chip White LED, 180mA 16.5V
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
Touch Panel Optional Touch Panel
Driver Board Kits Optional Driver Board Kits


Product Drawing

7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module

7 Inch 1024x600 HDMI LCD Display 1000nits Brightness With Driver Board LCD Module




Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.


2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.


3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;


4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display


5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium HDMI LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
