Specifications
Brand Name :
OEM/Customized
Model Number :
NV140FHM-N48
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
14 Inch
Resolution :
1920x1080
Brightness :
250 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
315.91(W)x197.57(H)x3.0 (T) mm
Operating Temperature :
0℃~+50℃
Description

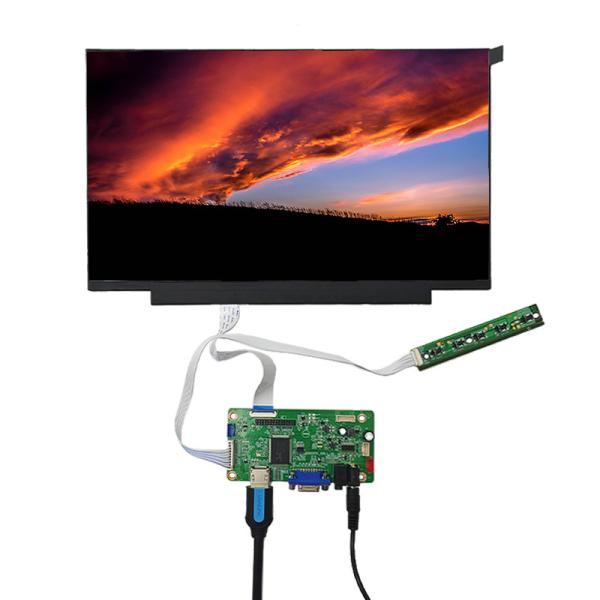

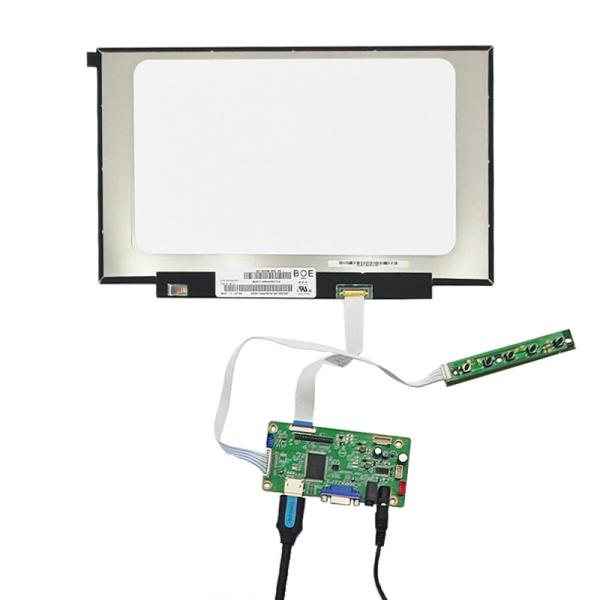

14 Inch NV140FHM-N48 BOE Industrial TFT LCD Display 1920x1080 EDP Optional Driver board

The NV140FHM-N48 is 14-inch HDMI LCD display that combines high-definition resolution with IPS technology for superior color accuracy and wide viewing angles. With a 1920x1080 resolution, it offers crystal-clear visuals, making it perfect for use in digital signage, POS systems, industrial applications, and interactive kiosks.This HDMI LCD display also features a glare surface treatment, providing better clarity in well-lit environments.

Applications
The NV140FHM-N48 HDMI LCD display is perfect for a wide range of B2B applications, including:

Digital Signage: Perfect for use in advertising displays, interactive digital signage, and information kiosks where high-quality visuals and interactivity are essential.

Industrial Control Panels: This display works well in industrial monitoring systems, control panels, and automation systems, providing clear, real-time data visualization.

Retail Displays: The HDMI compatibility and glare surface treatment ensure that this display excels in retail settings, providing vibrant visuals in both lighting and non-lighting environments.

Interactive Kiosks: With the optional touch panel, the NV140FHM-N48 is great for self-service kiosks in hotels, airports, hospitals, and exhibition centers.

Product Specification

Item Number NV140FHM-N48
Screen Size 14 Inch
Resolution 1920x1080
Brightness 250 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface 2 Lane EDP, 30pins Connector
Active Aera 309.312(W)x173.988(H) mm
Outline Dimension 315.91(W)x197.57(H)x3.0 (T) mm
Back-light Bottom edge side, 1-LED lighting bar type
Surface treatment Glare
Surface hardness 3H
Operating Temperature 0℃~+50℃
Storage Temperature -20℃~+60℃
Touch Panel Optional Touch Panel
HDMI Board Optional HDMI Board

Product Drawing

BOE Industrial HDMI LCD Display 14 Inch TFT LCD Display 1920x1080 EDP Optional Driver board

BOE Industrial HDMI LCD Display 14 Inch TFT LCD Display 1920x1080 EDP Optional Driver board

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
