Specifications
Brand Name :
OEM/Customized
Model Number :
ZH101BH063-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
10.1 Inch
Resolution :
1024x600
Brightness :
500 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
235.1(W) x143.1(H) x4.7(T) mm
Operating Temperature :
-20℃~+70℃
Description

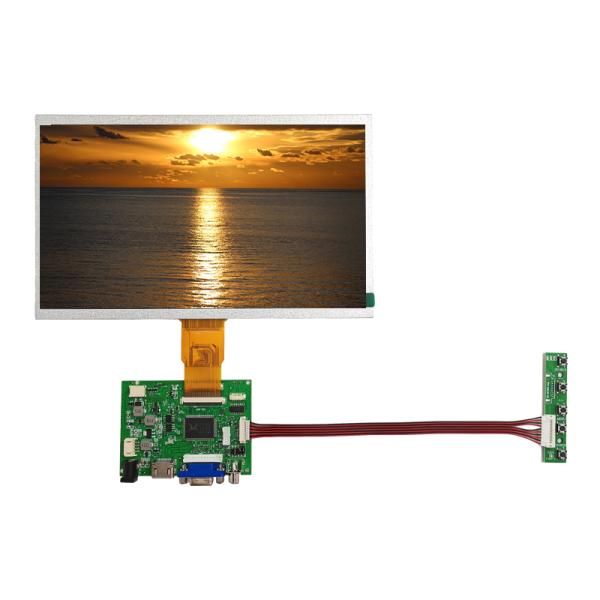

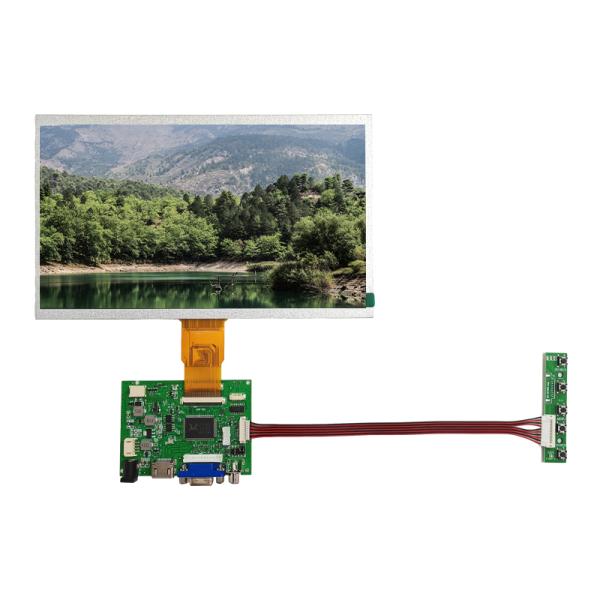

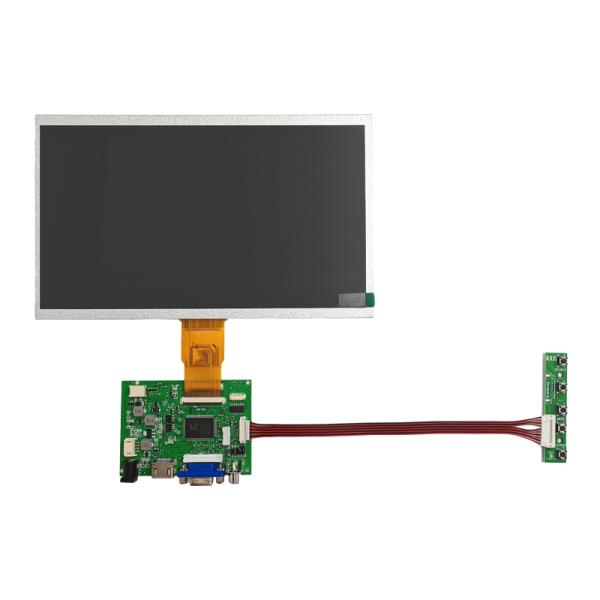

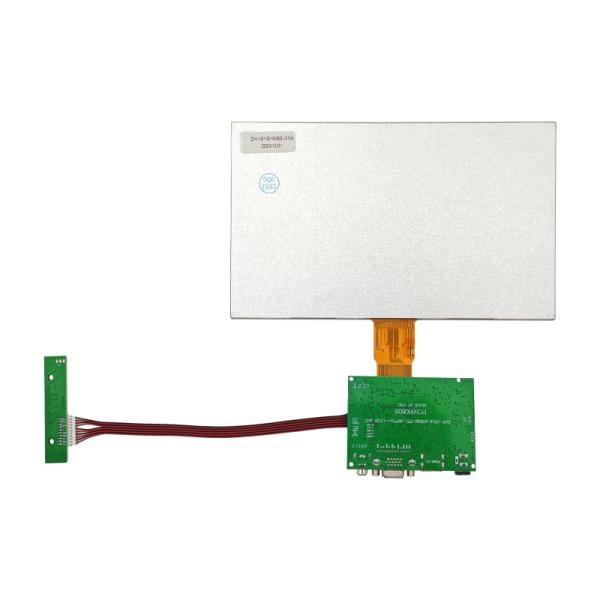

Custom LCD 1024x768 500nits TFT 10.1 Inch IPS Display with Driver Board kits

ZH101BH063-01A is a 10.1-inch TFT LCD module with a high-definition resolution of 1024×600. The display uses a normally black TFT panel with a wide viewing angle of 85° in all directions, providing excellent visual performance for professional-grade applications such as HMI terminals, industrial automation, smart home appliances and POS self-service terminals.

To simplify integration and speed up time to market, this model is available with a matching driver board (mainboard) kit, which is pre-configured for RGB interface and supports plug-and-play operation, providing a complete display solution and minimizing design complexity.

ZH101BH063-01A can be bundled with a pre-tuned motherboard solution to reduce your R&D workload and speed up prototyping. Kit options may include:

Pre-loaded timing & gamma settings

Power regulation (3.3V, 9.6V, VGH/VGL)

Touch integration (optional capacitive touch support)

Interfaces: HDMI, RGB, LVDS (customizable)

FPC/FFC connectors matching ZH101BH063-01A pinout

Technical documentation & firmware support

Application Scenarios of 10.1 Inch LCD

Industrial HMIs and PLC displays

Smart home hubs & wall-mounted control panels

Automotive rear-seat infotainment

Retail and self-service kiosks

IoT touch terminals

Custom embedded systems (with RGB-compatible MCUs or SoCs)

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

Item Number ZH101BH063-01A
Screen Size 10.1 Inch
Resolution 1024x600
Brightness 500 cd/m²(Typ.)
Display Mode IPS, Normally Black
Driver IC HX8282&HX8696
Interface RGB, FPC 50pins Connector
Active Aera 222.72(W) x 125.28(H) mm
Outline Dimension 235.0(W) x143.0(H) x2.8(T) mm
Backlight 42-Chip white LED, 140mA 19.8V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel Optional Touch Panel

Product Drawing

Custom HDMI LCD Display 1024x768 500nits TFT 10.1 Inch IPS Display With Driver Board Kits

Custom HDMI LCD Display 1024x768 500nits TFT 10.1 Inch IPS Display With Driver Board Kits

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium TFT LCD Module!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Order Samples Now!
