12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH121BIH D002-05A-TQ1
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
12.1 Inch
Resolution :
1280x800
Brightness :
750 cd/m² （Typ.）
Display type :
IPS, Normally Black
Outline Dimensions :
276.65(W) x179.4(H) x 5.8(T) mm
Operating Temperature :
-20℃~+70℃
Description

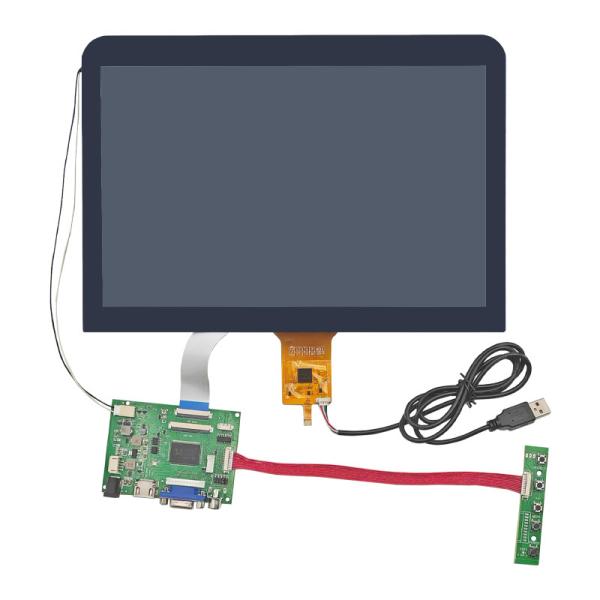

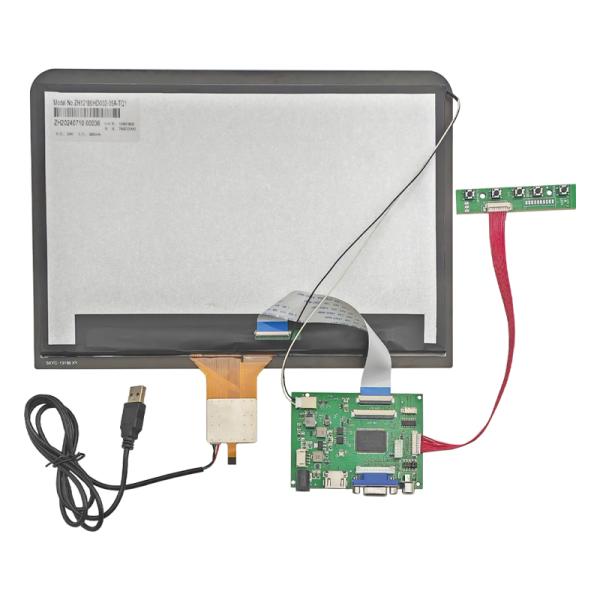

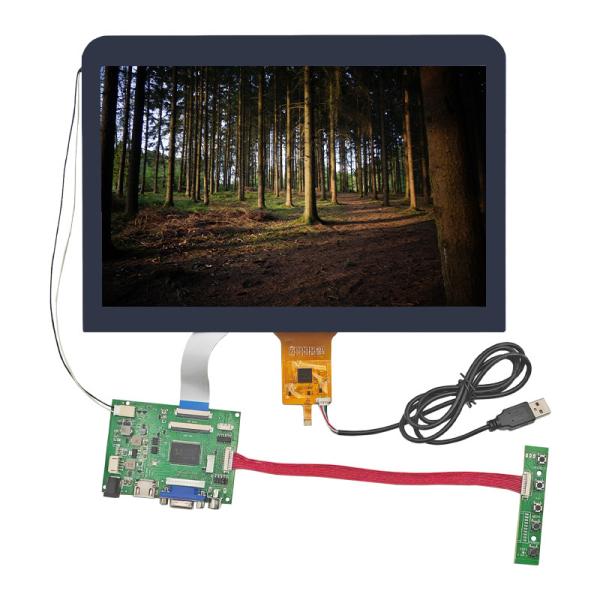

12.1 Inch 1280X800 TFT LCD Capacitive Touch Screen Panel LVDS IPS Display Module

Meta Title: ZH121BIH D002-05A-TQ1 12.1" Industrial HDMI LCD Display | High Brightness IPS Touch Screen
Meta Description: Industrial-grade 12.1-inch HDMI LCD Display with 1280x800 resolution, 750 cd/m² brightness, IPS panel, AR+AF surface, and wide temperature support.

The ZH121BIH D002-05A-TQ1 is a premium HDMI LCD Display engineered for professional and industrial environments where performance, reliability, and clarity are essential.

The optional HDMI board kit makes it easy to integrate this display into embedded systems, digital signage, control panels, and more. Built to withstand demanding conditions, it features AR (Anti-Reflection) and AF (Anti-Fingerprint) coatings, a 6H surface hardness, and a wide operating temperature range.

Product Specification

Item Number
ZH121BIH D002-05A-TQ1
Screen Size 12.1 Inch
Resolution 1280x800
Brightness 750 cd/m²(Typ.)
Display Mode IPS, Normally Black
Interface LVDS, 40pins connector
Active Aera 261.12(W) x163.2(H) mm
Outline Dimensions 276.65(W) x179.4(H) x 5.8(T) mm
Backlight 48-CHip White LED, 360mA 24V
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Touch Panel with Touch Panel
Touch IC ILI2511
Touch Interface I²C /USB
Surface treatment AR+AF
Surface Hardness 6H
HDMI Board Optional with HDMI Board Kits

Applications

Industrial control panels and automation equipment

Marine navigation and outdoor kiosks

Medical diagnostic and patient monitoring devices

Transportation displays and public information systems

Rugged handheld and portable computing devices

Product Drawing

12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution

12.1 Inch TFT LCD HDMI Capacitive Touch Screen Panel 1280X800 Resolution

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Get Your Custom HDMI LCD Display Solution Today
The ZH121BIH D002-05A-TQ1 is more than just an HDMI LCD Display — it is a high-performance, industrial-grade solution designed to deliver outstanding visual clarity, durability, and connectivity for your professional applications.

Contact our sales engineers today to discuss bulk pricing, OEM/ODM options, and integration support for your next project.

Your vision deserves the clarity, reliability, and performance of our HDMI LCD Display technology.
