800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen
Specifications
Brand Name :
OEM/Customized
Model Number :
ZH070CIWVG002-01A
Certification :
ROHS、ISO9001、CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500K pcs/ Month
Delivery Time :
7-15 working days
Packaging Details :
Foam Cotton And Carton Boxes
Size :
7.0 Inch
Resolution :
800x480
Brightness :
480 cd/m² （Typ.）
Display type :
IPS,Normally Black
Outline Dimensions :
166.6(W) x 109.4(H) x 5.7(T)mm
Operating Temperature :
-30℃~+85℃
Description

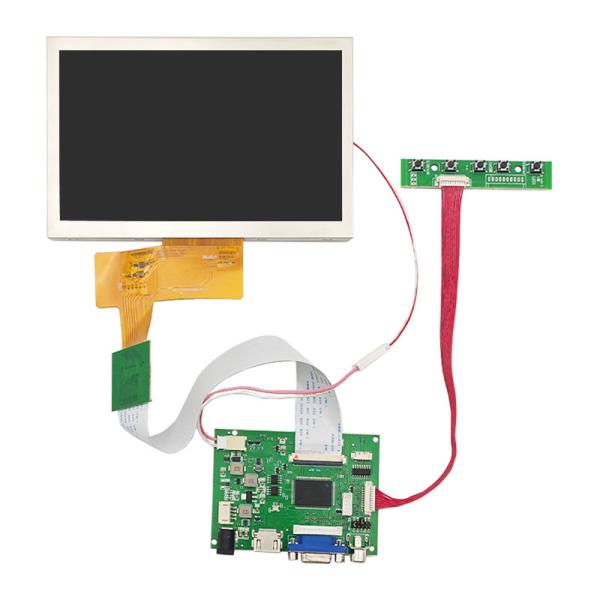

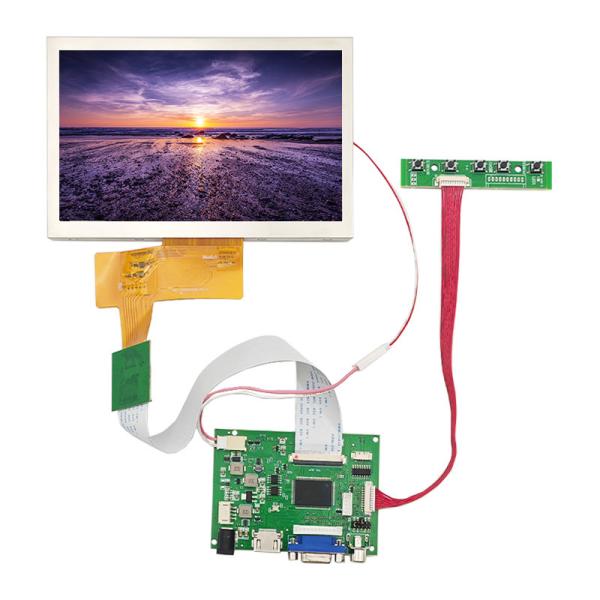

7 Inch LCD TFT Display 480nits Brightness 800x480 Resolution Optional with HDMI Board kits

The 7 Inch HDMI LCD Display 480 nits brightness: Ensures excellent visibility even in direct sunlight or bright environments, ideal for outdoor kiosks, industrial HMIs, and portable devices.

This Product 7 Inch HDMI LCD Display 800×480 resolution: Provides crisp visuals and color reproduction.

This 7 inch LCD Display with Optional HDMI board kit: Seamlessly integrates with Raspberry Pi, Arduino, or other SBCs (single-board computers) via HDMI, perfect for DIY projects, digital signage, and embedded systems.
Plug-and-play design: Easy to set up, with wide compatibility and no complicated drivers required.

Our Product supports touch screen add-ons (resistive/capacitive).

Also Support OEM/ODM service available: Customize the display according to your project needs.

Target Applications
1. Outdoor advertising machine 2. Medical monitor 3. Construction machinery HMI 4. Smart home control 5.Drone ground station

Company's focus on the core

  • Industrial-Grade TFT/OLED Displays (0.96" to 32")
  • Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
  • Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
  • Touch Solutions: Resistive/Capacitive/Cover Glass
  • TN/IPS Panels | Custom Backlight Systems

Product Specification

item ZH070CIWVG002-01A
Screen Size 7.0 Inch
Resolution 800x480
Brightness 480 cd/m²(Typ.)
Interface LVDS 4Lane, 40 pins Connector
Display Mode
IPS,Normally Black
CR 1000 (Typ.)
Viewing Angle 80/80/80/80 (Typ.)
Life time 30,000 Hrs (Min.)
Active Aera 152.4(W) x91.44(H) mm
Outline Dimension 166.6(W) x 109.4(H) x 5.7(T)mm
Backlight 27-Chip white LED, 360mA, 9.9V
Operating Temperature -35℃~+85℃
Storage Temperature -40℃~+90℃
Touch Panel Optional Touch Panel

Product Drawing

800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen

800x480 Resolution HDMI LCD Display 480nits Brightness 7 Inch TFT LCD Screen

Why Choose ZhanHui TFT LCD Screen?

  • Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
  • A powerful engineering support team offers a one-stop integrated solution
  • Flexible and efficient customization capabilities, with rapid response to demands
  • Strict quality control system (such as through IATF 16949, ISO 9001)
  • Global logistics and localized service support
  • Highly competitive cost-effectiveness

FQA

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Call to Action :

  • Upgrade your device visibility with this premium HDMI LCD Display!

  • Request a Quote Today!

  • Download Full Datasheet (Link)

  • Contact Sales for Volume Pricing

  • Integrate Brilliance - Order Samples Now!
